Belimo LHQ24A-MF100 - 100 N linear actuator

Belimo LHQ24A-MF100 - 100 N linear actuator

Belimo
zł1,076.35
VAT included
zł875.08 tax excluded

Configurable Belimo LHQ24A-MF100 linear actuator for controlling dampers and sliding valves in building services systems. Force 100 N, AC/DC 24 V supply, modulating control 2...10 V and position feedback signal 2...10 V.

Max. stroke 100 mm, adjustable in 20 mm increments; motor running time 3.5 s / 100 mm, configurable within 3.5...15 s / 100 mm. IP54 protection rating.

Delivery in approx. 14 days
Share

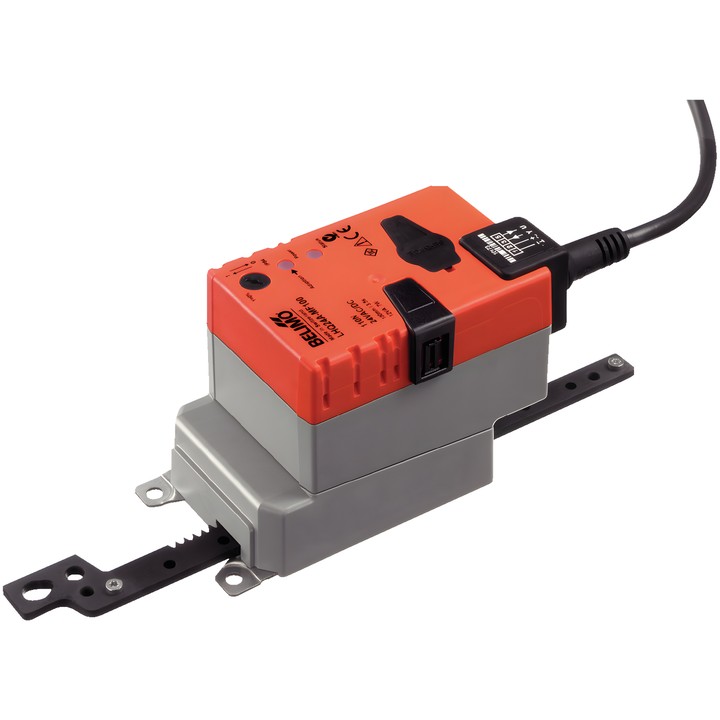

Belimo LHQ24A-MF100 linear actuator

Configurable actuator for controlling dampers and sliding valves in building services systems. Controlled by an analogue Y signal; the U feedback signal is used for electrical position indication.

Key features and specifications

  • Motor force: 100 N.
  • Rated voltage: AC/DC 24 V; frequency 50/60 Hz.
  • Modulating control: 2...10 V; position feedback signal: 2...10 V.
  • Stroke: 100 mm; max. 100 mm, adjustable in 20 mm increments. Minimum stroke: 40 mm.
  • Motor running time: 3.5 s / 100 mm; setting range: 3.5...15 s / 100 mm.
  • Power consumption during operation: 13 W; in rest position: 2 W; for cable sizing: 23 VA.
  • Power and control connection: 1 m cable, 4x 0.75 mm².
  • Direction of movement selected by switch; manual override by push-button with locking option.
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...40°C [-22...104°F].

Setting range adaptation takes place manually or automatically when the power is first switched on. Parameters can be changed using Belimo Assistant 2 or ZTH EU.

  • Brand
    Belimo
  • Reference
    LHQ24A-MF100
  • EAN13
    7630498120947

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    13 W
  • Power consumption (holding)
    2 W
  • Rated power
    23 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Force
    100 N
  • Manual override
    Push-button, with locking option
  • Stroke
    100 mm
  • Running time (motor)
    3.5 s / 100 mm
  • Variable motor running time
    3.5...15 s / 100 mm
  • Ambient temperature
    -30...40°C [-22...104°F]
  • Direction of movement - motor
    Selectable by switch

Techniczna karta katalogowa

Download (1.54MB)

Instrukcja montażu

Download (430.37KB)

EU Declaration of Conformity – LHQ24A-MF100

Download (32.78KB)

Environmental Declaration – LH..100..

Download (71.97KB)
In business since 2005
Over 20 years of experience
A trusted partner
Reliable service and customer trust
Technical support
Help with selecting and operating equipment
