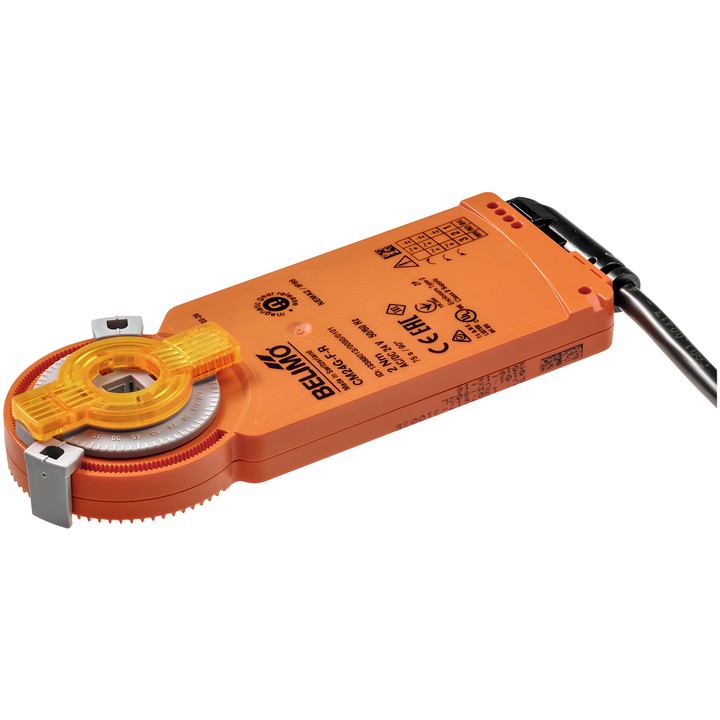

Belimo CM24G-F-R - damper actuator

Name: Belimo CM24G-F-R - damper actuator
Brand: Belimo
SKU: CM24G-F-R
Price: 801.96 PLN
Availability: OutOfStock

Belimo

zł801.96

VAT included

zł652.00 tax excluded

Belimo CM24G-F-R damper actuator with a torque of 2 Nm, powered by AC/DC 24 V. Supports Open/Close and 3-point control; motor running time is 75 s / 90°.

Equipped with an 8x8 mm form-fit connection, manual override using a magnet and a 1 m cable, 3x 0.75 mm². IEC/EN degree of protection: IP66 when the rear side is mounted flush against the damper housing.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo CM24G-F-R – damper actuator

Actuator designed to position dampers in technical building systems. According to the technical data sheet, it is intended for air dampers with an area of up to approx. 0.4 m².

Key features and specifications

Motor torque: 2 Nm; nominal supply voltage: AC/DC 24 V, 50/60 Hz.
Control: Open/Close, 3-point; motor running time: 75 s / 90°.
Motor direction of rotation: clockwise (cw); rotation angle: 0...287.5°.
Mechanical connection: 8x8 mm form-fit connection; rotation angle adjustment using mechanical end stops.
Manual override using a magnet; mechanical position indicator.
Power consumption during operation: 0.5 W; in the idle position: 0.2 W; wire sizing power: 1 VA.
Power and control connection: 1 m cable, 3x 0.75 mm².
IEC/EN degree of protection: IP66; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -30...50°C [-22...122°F].

Installation note

To ensure IP66 protection, the rear of the actuator must fit tightly against the damper housing. When installed with the device rotated by 180°, the degree of protection is only IP54.
