Belimo LM24A-SX-F - actuator for dampers

Belimo LM24A-SX-F - actuator for dampers

Belimo
zł1,270.59
VAT included
zł1,033.00 tax excluded

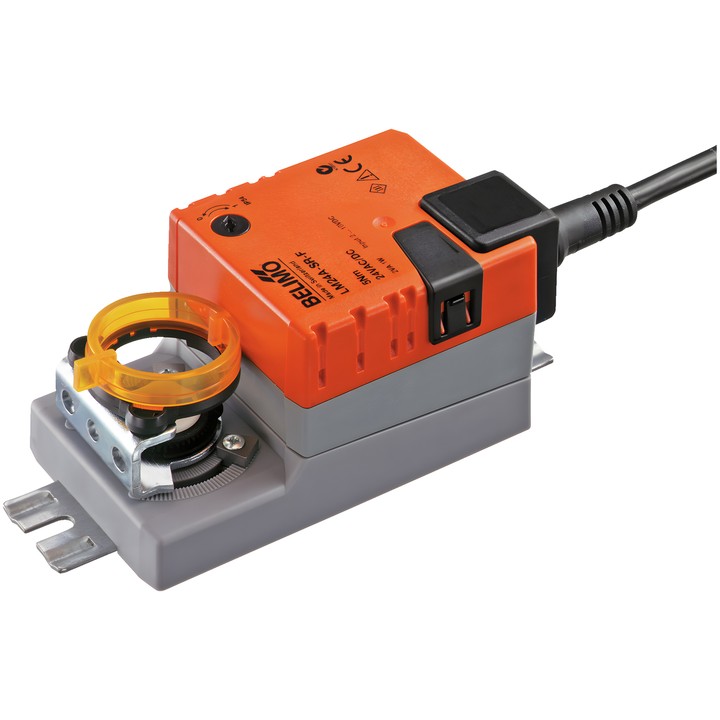

Belimo LM24A-SX-F modulating actuator for dampers with a torque of 5 Nm, AC/DC 24 V supply and 8x8 mm form-fit connection. The motor running time is 150 s / 90°.

Control range 2...10 V and position feedback signal 2...10 V. The actuator supports adaptation of the operating range and manual adjustment using a push-button that can be locked.

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo LM24A-SX-F – modulating actuator for dampers

Actuator designed to control dampers in building services systems. According to the technical data sheet, it is suitable for air dampers with an area of up to approx. 1 m².

Key features and specifications

  • Torque: 5 Nm; supply: AC/DC 24 V, 50/60 Hz.
  • Modulating control: control range Y 2...10 V; position feedback signal U 2...10 V.
  • Motor running time: 150 s / 90°; rotation angle: max. 95°, with adjustable mechanical end stops on both sides.
  • Mechanical connection: 8x8 mm form-fit connection; mechanical position indicator.
  • Direction of movement selected by 0/1 switch; manual adjustment using a push-button that can be locked.
  • Operating range adaptation after pressing the manual adjustment button; adaptation is also performed when the power is first switched on.
  • Power consumption during operation: 1 W; in the rest position: 0.4 W; power rating for cable sizing: 2 VA.
  • Power and control connection: 1 m cable, 4x 0.75 mm².
  • IEC/EN degree of protection: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    LM24A-SX-F

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    1 W
  • Power consumption (holding)
    0.4 W
  • Rated power
    2 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    5 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Form-fit connection 8x8 mm

Techniczna karta katalogowa

Download (1.39MB)

Instrukcja montażu

Download (425.79KB)

EU Declaration of Conformity – LM24A-SX-F

Download (38.81KB)

Environmental Declaration – LM..

Download (72.45KB)
In business since 2005
Over 20 years of experience
A trusted partner
Reliable service and customer trust
Technical support
Help with selecting and operating equipment
