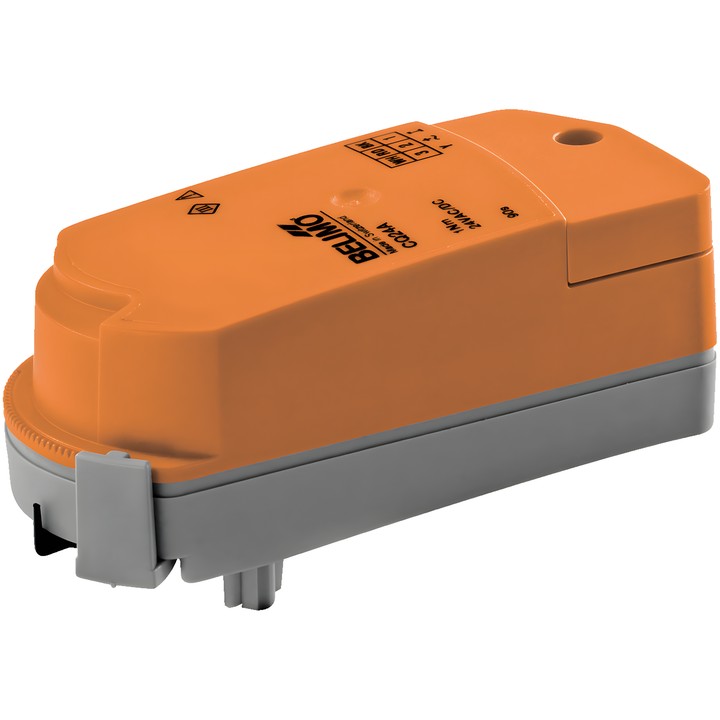

Belimo CQ230A-T - rotary actuator for zone valves

Name: Belimo CQ230A-T - rotary actuator for zone valves
Brand: Belimo
SKU: CQ230A-T
Price: 346.97 PLN
Availability: BackOrder

Belimo

zł346.97

VAT included

zł282.09 tax excluded

Belimo CQ230A-T rotary actuator for zone valves, with a torque of 1 Nm. AC 100...240 V power supply, Close/Open or 3-point control, running time 75 s / 90°.

Equipped with connection terminals, a mechanical rotation angle limiter and a position indicator. IEC/EN degree of protection IP40.

Delivery in approx. 14 days

Belimo CQ230A-T rotary actuator

Electronic rotary actuator for zone valves. It clips onto the valve without the use of tools. The adjustable rotation angle limiter is used to set the valve’s maximum flow.

Key features and technical data

Torque: 1 Nm.
Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
Control: Close/Open, 3-point.
Motor running time: 75 s / 90°.
Power consumption during operation: 1 W; in standby position: 0.7 W; sizing power: 2 VA.
Power and control connection: 2.5 mm² terminals (cable ø6.3...6.8 mm, 3-core).
Mechanical rotation angle limiter adjustable in 2.5° increments and position indicator.
Manual adjustment after detaching the actuator from the valve.
IEC/EN degree of protection: IP40; IEC/EN protection class: II, reinforced insulation.

Brand

Belimo
Reference

CQ230A-T
EAN13

7630498110597

AC/DC voltage

AC 100...240 V
Power consumption (running)

1 W
Power consumption (holding)

0.7 W
Rated power

2 VA
Power supply control connection

Terminals 2.5 mm² (cable ø6.3...6.8 mm, 3-core)
Control type

Open/close, 3-point
Protection rating

IP40
