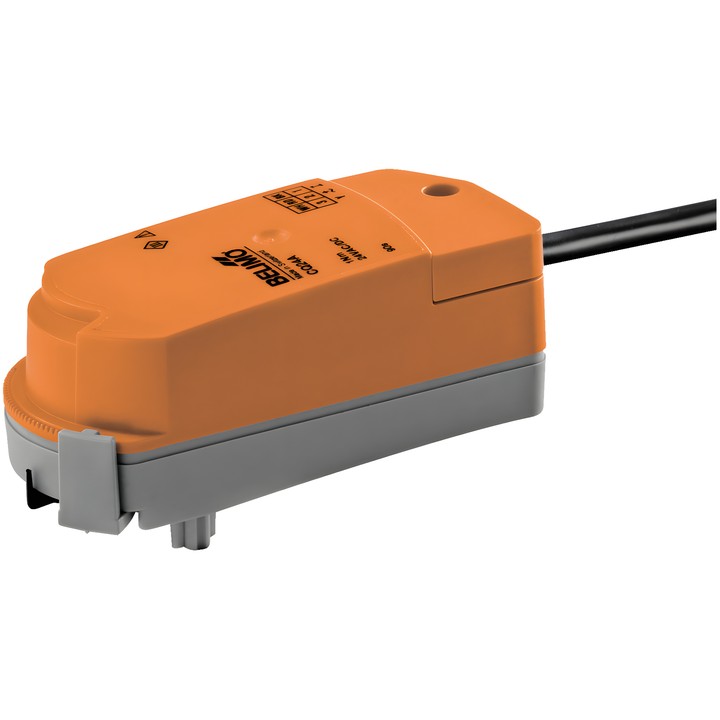

Belimo CQD24A - rotary actuator for zone valves

Name: Belimo CQD24A - rotary actuator for zone valves
Brand: Belimo
SKU: CQD24A
Price: 608.85 PLN
Availability: OutOfStock

zł608.85

VAT included

zł495.00 tax excluded

Belimo CQD24A rotary actuator for zone valves. Torque 1 Nm, AC/DC 24 V supply, Close/Open or 3-point control, and an operating time of 15 s / 90°.

Tool-free snap-on mounting, adjustable rotation angle and position indicator. IP40 protection rating.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo CQD24A – rotary actuator for zone valves

Electronic rotary actuator with Close/Open or 3-point control. The actuator snaps onto the valve without tools.

Torque: 1 Nm.
Nominal voltage: AC/DC 24 V; frequency: 50/60 Hz.
Voltage range: AC 19.2...28.8 V / DC 21.6...28.8 V.
Operating time: 15 s / 90°; constant, independent of load.
Power consumption during operation: 1 W; in standby: 0.2 W; sizing power: 1.5 VA.
Power and control connection: 1 m cable, 3x 0.75 mm².
Mechanical rotation angle limitation, adjustable in 2.5° increments, enables setting the valve's maximum flow; position indicator included.
Manual adjustment after detaching the actuator from the valve.
Overload protection and automatic stop when the end stop is reached.
IEC/EN protection rating: IP40; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
Ambient temperature: 5...40°C.
