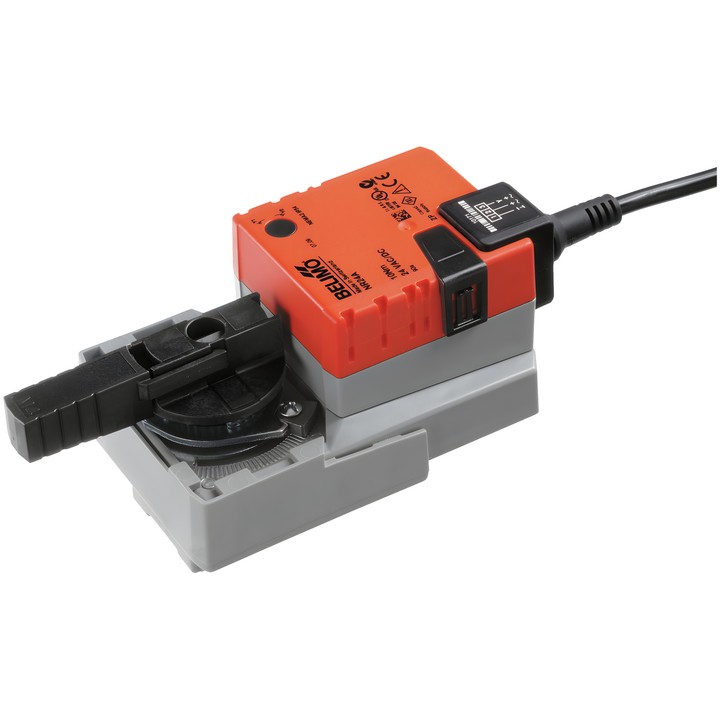

Belimo NR24A - rotary actuator for ball valves

Name: Belimo NR24A - rotary actuator for ball valves
Brand: Belimo
SKU: NR24A
Price: 654.22 PLN
Availability: BackOrder

Belimo

zł654.22

VAT included

zł531.89 tax excluded

Belimo NR24A rotary actuator for ball valves, with a torque of 10 Nm. AC/DC 24 V supply, Open/Close or 3-point control, and an operating time of 90 s / 90°.

Features push-button manual override, mechanical angle-of-rotation limit stops, and a position indicator. IP54 protection rating.

Delivery in approx. 14 days

Belimo NR24A – rotary actuator for ball valves

Actuator mounted directly on the ball valve using a single central screw. The mounting position relative to the valve can be selected in 90° increments.

Key features and specifications

Torque: 10 Nm.
Rated voltage: AC/DC 24 V; rated voltage frequency: 50/60 Hz.
Rated voltage range: AC 19.2...28.8 V / DC 19.2...28.8 V.
Control: Open/Close or 3-point.
Operating time: 90 s / 90°.
Power consumption during operation: 2 W; at rest: 0.2 W; for cable sizing: 4 VA.
Power and control connection: 1 m cable, 3x 0.75 mm².
Push-button manual override with locking option; mechanical, removable position indicator.
Adjustable angle of rotation with mechanical end stops.
Overload protection; the actuator stops automatically when an end stop is reached.
IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
