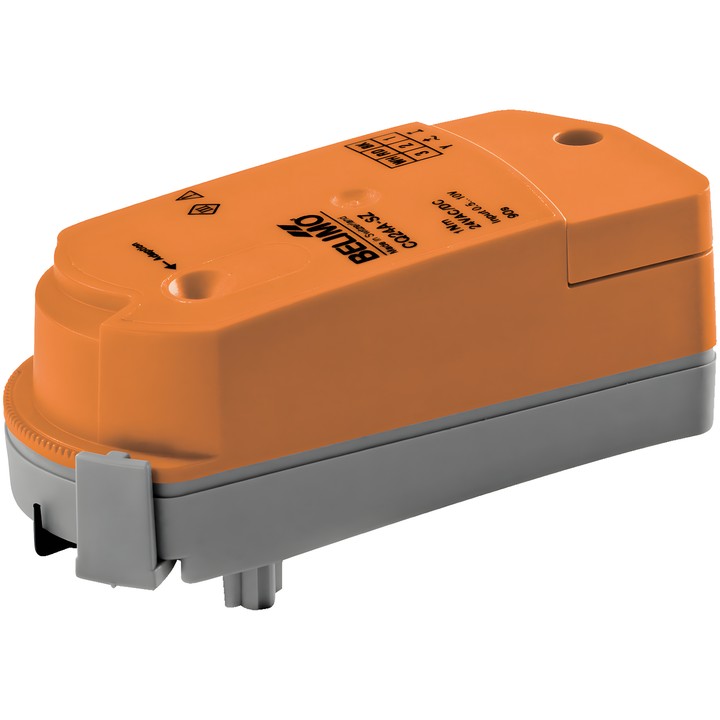

Belimo CQD24A-SR-T - rotary actuator for zone valves

Belimo CQD24A-SR-T rotary actuator

Electronic rotary actuator for zone valves, controlled by a Y signal. The U measurement voltage provides electrical indication of valve position from 0...100% and serves as a control signal for other actuators.

Key features and specifications

• Torque: 1 Nm; rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
• Modulating control: 2...10 V; position feedback signal: 2...10 V.
• Travel time: 15 s / 90°.
• Power consumption during operation: 1 W; in idle position: 0.3 W; for wire sizing: 1.5 VA.
• Power and control connection: 1.5 mm² terminals (cable ø6.3...6.8 mm, 4-core).
• Tool-free snap-on mounting; mechanical position indication.
• Manual adjustment is possible after detaching the actuator.
• Rotation angle adjustment in 2.5° increments using a clip to set the valve's maximum flow.
• IEC/EN protection class III, Safety Extra-Low Voltage (SELV); IEC/EN IP40 degree of protection.
• Ambient temperature: 5...40°C; ambient humidity: max. 95% RH, non-condensing.

After each flow setting change using the actuator's limit stop clip, run an adaptation on the modulating actuator.
