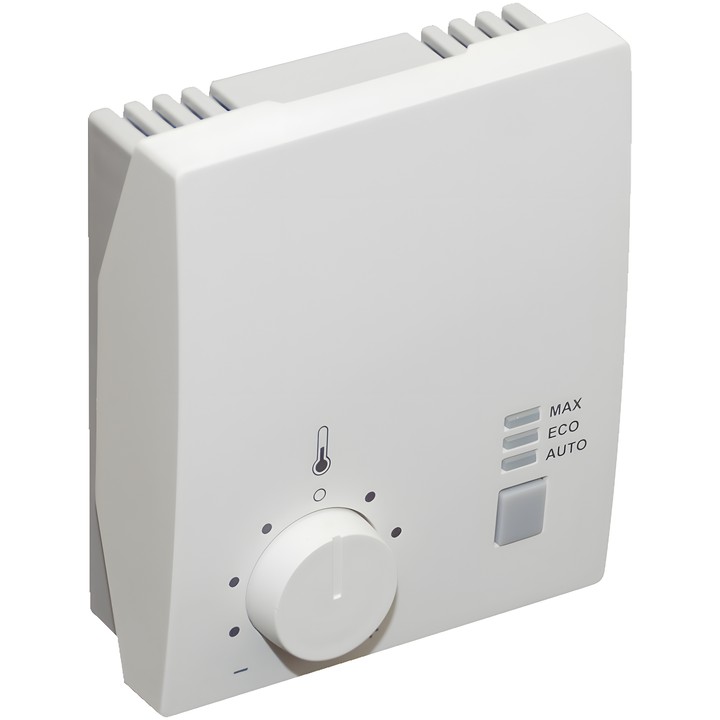

Belimo CR24-B3 - room temperature controller

Name: Belimo CR24-B3 - room temperature controller
Brand: Belimo
SKU: CR24-B3
Price: 871.46 PLN
Availability: BackOrder

Belimo

zł871.46

VAT included

zł708.50 tax excluded

Belimo CR24-B3 room temperature controller with three output sequences. The (0)2...10 V output is for VAV control, the 0...10 V output for heating or cooling, and the 3-point output for heating.

AC 24 V 50/60 Hz power supply. Selection and indication of AUTO / ECO / MAX modes and a setpoint adjustment knob ±3 K.

Delivery in approx. 14 days

Belimo CR24-B3 – single-room temperature controller

Controller with three output sequences for VAV control and heating and cooling. Output ao2 can operate a heating or cooling sequence in changeover mode.

Key features

Power supply: AC 24 V 50/60 Hz.
System output ao1 for Belimo VAV controller: (0)2...10 V, max. 5 mA.
Output ao2 for heating or cooling: 0...10 V, max. 5 mA.
Heating output ao3: 3-point signal, AC 24 V, max. 0.5 A / 10 VA.
Control characteristics: P / PI; adjustable heating / cooling proportional band: 1.5 / 1.0 K or 3.0 / 2.0 K.
Heating temperature setpoint range: 15...36°C; default setpoint: 21°C.
Internal temperature sensor and input for an external NTC sensor, 5 kΏ, measuring range 10...45°C.
Mode selection and LED indication: AUTO / ECO / MAX; setpoint correction knob ±3 K.
Functions: Energy hold off, Stand-by, frost protection, changeover, Boost and support for chilled ceilings with dew-point limitation.
External setpoint shift: 0...10 V signal corresponds to a shift of 0...10 K.
Protection rating: IP30 according to EN 60529; screw terminals max. 1.5mm².
