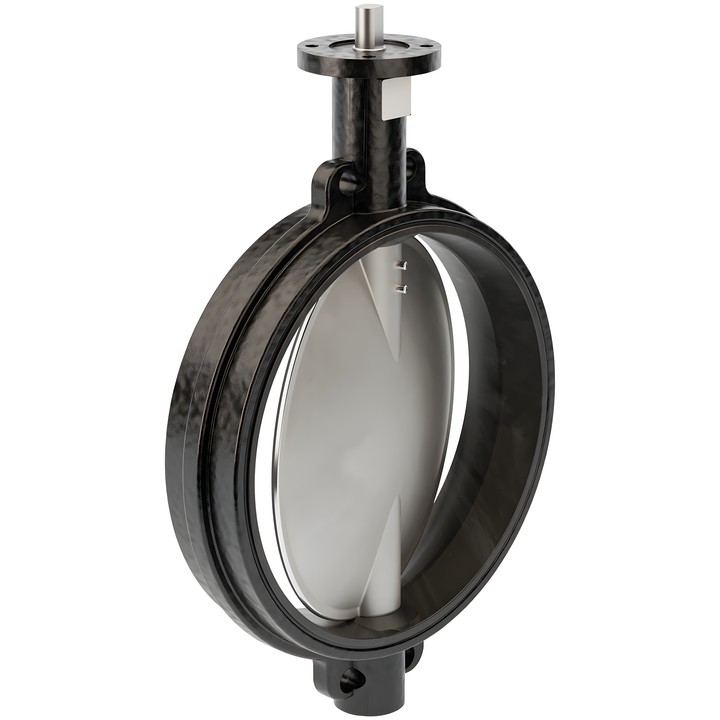

Belimo D6600N - 2-way butterfly valve DN 600

Name: Belimo D6600N - 2-way butterfly valve DN 600
Brand: Belimo
SKU: D6600N
Price: 43483.86 PLN
Availability: BackOrder

Belimo

zł43,483.86

VAT included

zł35,352.73 tax excluded

Belimo D6600N is a 2-way wafer-type butterfly valve, DN 600, PN 16, with a flanged connection. Kvs 10900 m³/h, Kvmax 37300 m³/h; fluid temperature -20...120°C [-4...248°F].

Delivery in approx. 14 days

The Belimo D6600N butterfly valve is designed for open and closed water systems and for switching heat sources or cooling equipment on and off. The medium can be water or water with a maximum of 50% by volume glycol.

Key technical data

Pattern: 2-way; wafer-type construction, DN 600, PN 16.
Kvs: 10900 m³/h; Kvmax: 37300 m³/h.
Maximum differential pressure ∆pmax for DN 600: 300 kPa.
Fluid temperature: -20...120°C [-4...248°F].
Flow characteristic: 0...60% opening angle – equal percentage; 0...100% opening angle – S-shaped.
Leakage rate: tightness A (EN 12266-1).
Angle of rotation: 90°; pipe connection: flange.
Body: EN-GJS-400-18-LT (GGG 40.3); closing element: Stainless steel AISI 304 (1.4301); seat: EPDM.

Permissible installation position: from vertical to horizontal relative to the spindle. Installation with the spindle pointing downwards is not permitted.
