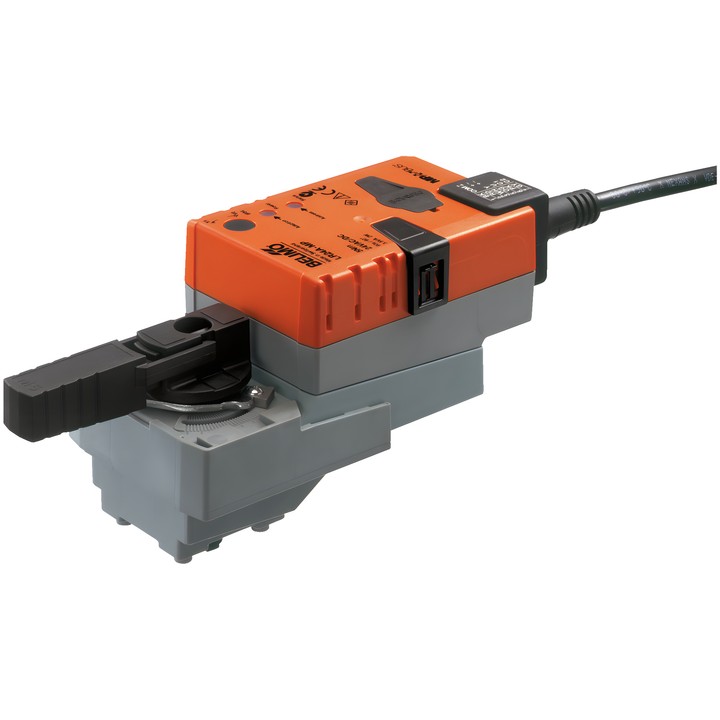

Belimo LR24A-MP - rotary actuator for ball valves

Belimo LR24A-MP - rotary actuator for ball valves

Belimo
zł754.08
VAT included
zł613.07 tax excluded

Communicating rotary actuator for ball valves, with a torque of 5 Nm and AC/DC 24 V supply. Supports MP-Bus and 2...10 V modulating control.

Motor running time is 90 s / 90° (adjustable 35...150 s). The actuator has a 2...10 V position feedback signal, manual push-button operation and IP54 protection.

Delivery in approx. 14 days
Share

Belimo LR24A-MP

Communicating rotary actuator designed for ball valves. It can operate with an analogue control signal Y or receive a digital control signal via MP-Bus. It can also transmit the signal from a connected sensor via MP-Bus.

Key features and specifications

  • Motor torque: 5 Nm; rated voltage: AC/DC 24 V, 50/60 Hz.
  • Modulating control: operating range Y 2...10 V; position feedback signal U 2...10 V.
  • MP-Bus communication; maximum 8 MP-Bus nodes.
  • Motor running time: 90 s / 90°; adjustable running time: 35...150 s.
  • Power consumption during operation: 2.5 W; at rest: 1.3 W; wire sizing power: 5 VA.
  • Power and control connection: 1 m cable, 4x 0.75 mm².
  • Manual push-button operation with locking option; mechanical rotation angle limiters and position indicator.
  • Setpoint range adaptation on first power-up; adaptation can also be initiated manually.
  • Degree of protection IEC/EN IP54; protection class IEC/EN III, Safety Extra-Low Voltage (SELV).

  • Brand
    Belimo
  • Reference
    LR24A-MP
  • EAN13
    7630498112546

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    2.5 W
  • Power consumption (holding)
    1.3 W
  • Rated power
    5 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    MP-Bus DC 2...10 V DC 0.5...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2

Techniczna karta katalogowa

Download (1.9MB)

Instrukcja montażu

Download (630.56KB)

Techniczna karta katalogowa – LR24A-MP

Download (1.9MB)

EU Declaration of Conformity – LR24A-MP

Download (32.76KB)

Environmental Declaration – LR..

Download (72.68KB)
