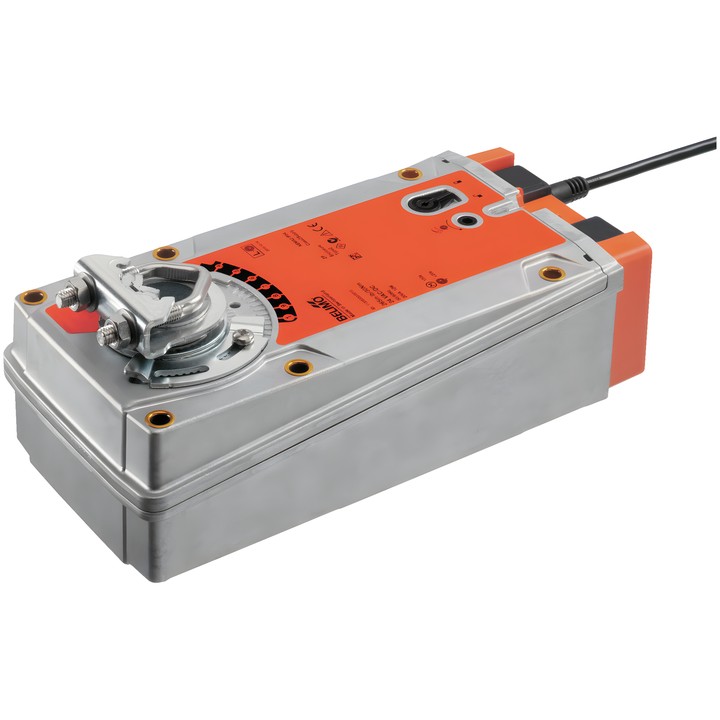

Belimo EF24A - rotary actuator for dampers with fail-safe function

Belimo EF24A – actuator for dampers

The rotary actuator with fail-safe function is designed to operate dampers in stationary heating, ventilation and air conditioning systems. According to the technical data sheet, it supports air dampers with an area of up to approx. 6 m². During operation, the motor moves the damper and tensions the return spring; if the power supply fails, the spring moves it to the safety position.

Key features and parameters

• Motor and fail-safe function torque: 30 Nm.
• Rated voltage: AC/DC 24 V; rated voltage frequency: 50/60 Hz.
• Control: Open/Close.
• Motor running time: 75 s / 90°; fail-safe function running time: <20 s @ -20...50°C, <60 s @ -30°C.
• Angle of rotation: max. 95°, adjustable using mechanical stops.
• Mechanical connection: universal clamp 12...26.7 mm; motor and fail-safe function direction of rotation selected by L/R mounting.
• Manual override using a crank and locking switch; mechanical position indicator.
• Power consumption: 9.5 W while running, 4.5 W at rest; 16 VA for wire sizing.
• Power and control connection: 1 m cable, 2x 0.75 mm², halogen-free.
• Degree of protection: IP54; ambient temperature: -30...50°C [-22...122°F].
