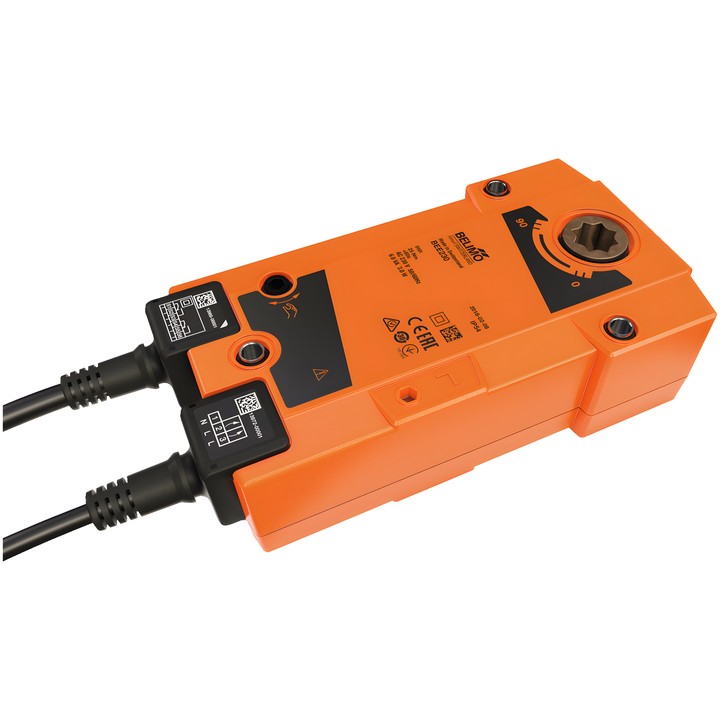

Belimo BEE230 - actuator for smoke control dampers

Belimo BEE230 - actuator for smoke control dampers

Belimo
zł2,217.69
VAT included
zł1,803.00 tax excluded

Belimo BEE230 actuator for smoke control dampers with a torque of 25 Nm, AC 230 V power supply and Close/Open control. Features a 12x12 mm mechanical connection with a through hollow shaft and 2x SPDT position indication.

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo BEE230 – actuator for smoke control dampers

Actuator with two-wire Close/Open control. The motor direction of rotation can be selected during installation. Manual adjustment is performed using the crank supplied with the device.

Key technical data

  • Torque: 25 Nm; rated voltage: AC 230 V, 50/60 Hz.
  • Motor running time: <60 s / 90°; maximum rotation angle: 95°.
  • Power consumption during operation: 3.5 W; in standby: 0.4 W; sizing power: 6 VA.
  • Mechanical connection: 12x12 mm form-fit connection, through hollow shaft.
  • Auxiliary switches: 2x SPDT, switching points 5° / 80°.
  • Power and control connection: 1 m cable, 3x 0.75 mm², FRNC (halogen-free); auxiliary switch connection: 1 m cable, 6x 0.75 mm², FRNC (halogen-free).
  • Mechanical position indicator and Safety Position Lock™.
  • Degree of protection: IP54; IEC/EN protection class: II, reinforced insulation; ambient temperature: -30...55°C [-22...131°F].

The package includes a hand crank, indicator and protective bag. The actuator is adapted to the damper and installed by the smoke control damper manufacturer.

  • Brand
    Belimo
  • Reference
    BEE230
  • EAN13
    7630498118418

  • AC/DC voltage
    AC 230 V
  • Auxiliary switch connection
    Cable 1 m, 6x 0.75 mm², FRNC (halogen-free)
  • Power consumption (running)
    3.5 W
  • Power consumption (holding)
    0.4 W
  • Rated power
    6 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm², FRNC (halogen-free)
  • Control type
    Close/Open
  • Protection rating
    IP54
  • Manual override
    With crank
  • Running time (motor)
    ＜60 s / 90°
  • Ambient temperature
    -30...55°C [-22...131°F]
  • Auxiliary contacts
    2x SPDT
  • Torque
    25 Nm
  • Direction of movement - motor
    Selectable by mounting
  • Rotational angle
    95°
  • Mechanical connection
    Form-fit connection 12x12 mm, through hollow shaft

Techniczna karta katalogowa

Download (993.43KB)

Instrukcja montażu

Download (1.31MB)

Techniczna karta katalogowa – BEE230

Download (997.09KB)

EU Declaration of Conformity – BEE230

Download (32.96KB)

Environmental Declaration – BEE..

Download (72.01KB)
