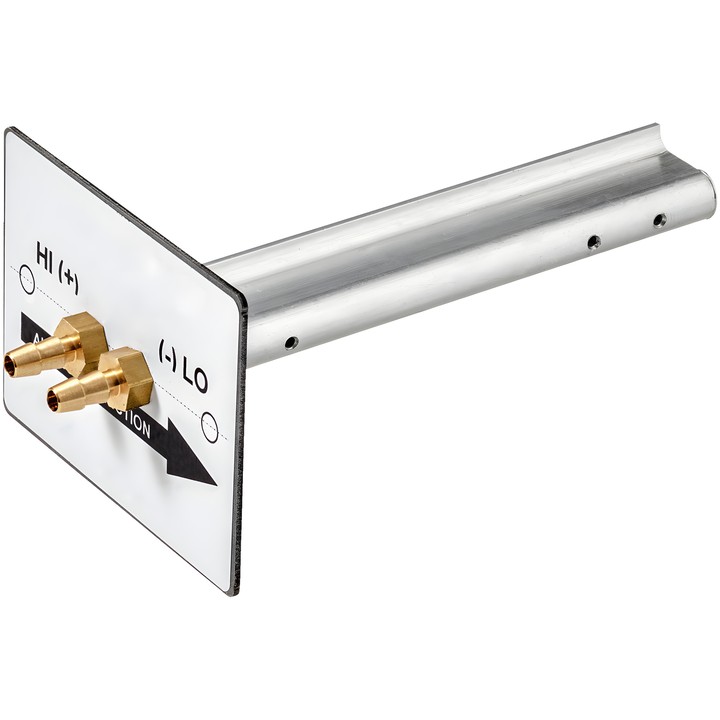

Belimo EXT-AC-L250 - volumetric airflow measurement probe

Name: Belimo EXT-AC-L250 - volumetric airflow measurement probe
Brand: Belimo
SKU: EXT-AC-L250
Price: 581.79 PLN
Availability: OutOfStock

Belimo

zł581.79

VAT included

zł473.00 tax excluded

Probe for measuring volumetric airflow, 250 mm long, designed for rectangular ducts. Used in combination with a 22ADP-... differential pressure sensor. Measurement is possible at air velocities from 2 to 25 m/s.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo EXT-AC-L250 probe

Accessory for measuring volumetric airflow in rectangular ducts, used in combination with a 22ADP-... differential pressure sensor.

Key features

Probe length: 250 mm.
Air velocity range in which measurement is possible: from 2 to 25 m/s.
Medium: air.
Probe material: aluminium.
Medium temperature: 5...95°C [41...203°F].

Installation notes

Use several probes in rectangular ducts with a height greater than 300 mm. During commissioning, the 22ADP-.. differential pressure sensor must be configured in accordance with the documentation: change the fan manufacturer to AirConcepts, set the k-factor, and set the lower and upper volumetric airflow values. The probe’s k-factor is given in the installation instructions.
