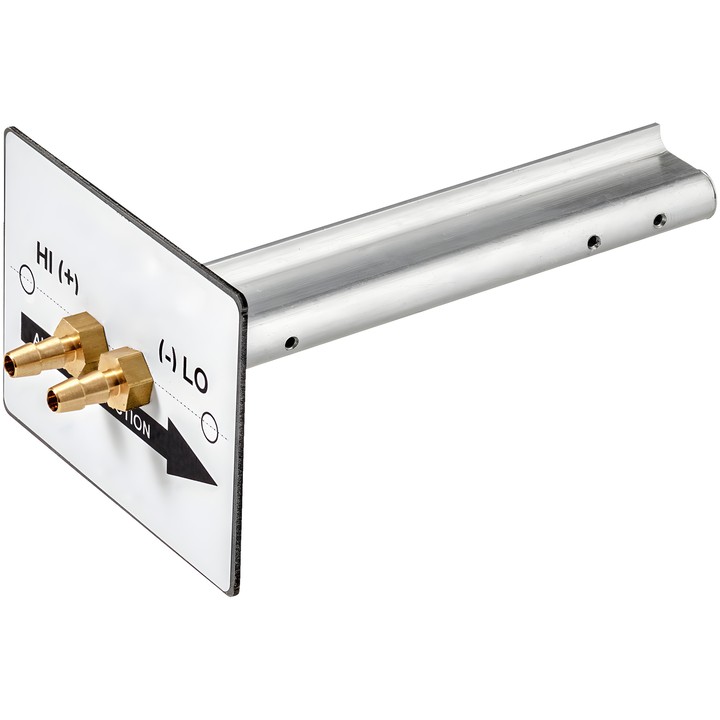

Belimo EXT-AC-L300 - air volume flow measuring probe

Belimo EXT-AC-L300 - air volume flow measuring probe

Belimo
zł592.86
VAT included
zł482.00 tax excluded

Probe for measuring air volume flow in a rectangular duct. Probe length: 300 mm. Designed for use with a 22ADP-.. differential pressure sensor; measurements are possible at air velocities from 2 to 25 m/s.

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo EXT-AC-L300

Probe for measuring air volume flow in a rectangular duct, used in combination with a 22ADP-... differential pressure sensor.

Key features

  • Probe length: 300 mm.
  • Air velocity measurement range: from 2 to 25 m/s.
  • Medium: air.
  • Medium temperature: 5...95°C [41...203°F].
  • Probe material: aluminium.

Several probes must be used in rectangular ducts with a height greater than 300 mm. During commissioning, the 22ADP-.. differential pressure sensor must be configured, including changing the fan manufacturer to AirConcepts, setting the probe k-factor, and setting the lower and upper air volume flow values.

  • Brand
    Belimo
  • Reference
    EXT-AC-L300
  • EAN13
    7630498119903

  • Probe length
    300 mm

Techniczna karta katalogowa

Download (827.77KB)

Instrukcja montażu

Download (621.51KB)

Techniczna karta katalogowa – EXT-AC-..

Download (832.18KB)
