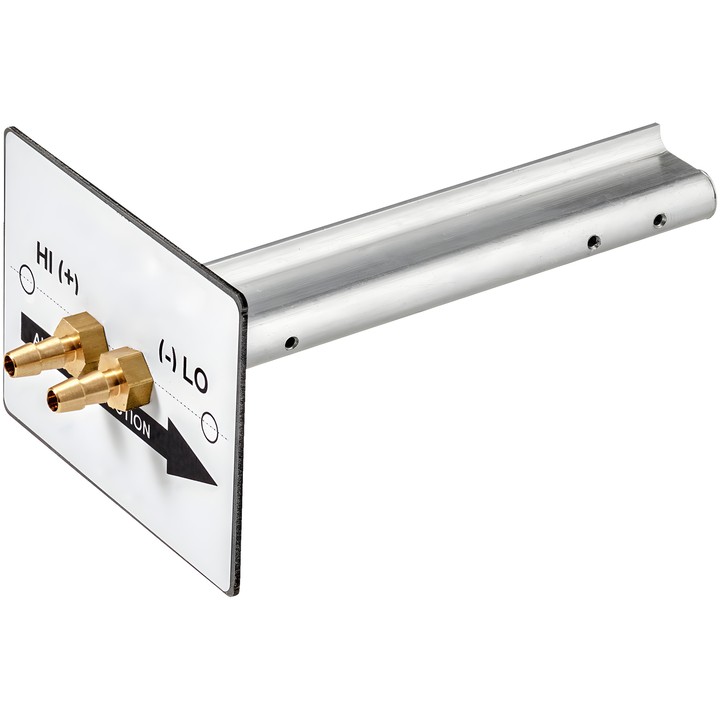

Belimo EXT-AC-L700 - probe for measuring volumetric airflow

Name: Belimo EXT-AC-L700 - probe for measuring volumetric airflow
Brand: Belimo
SKU: EXT-AC-L700
Price: 964.32 PLN
Availability: OutOfStock

Belimo

zł964.32

VAT included

zł784.00 tax excluded

A 700 mm probe for measuring volumetric airflow in a rectangular duct, designed for use with a 22ADP-... differential pressure sensor. Measurements are possible at air velocities from 2 to 25 m/s.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo EXT-AC-L700

Probe for measuring volumetric airflow in a rectangular duct. It is used for measurement together with a 22ADP-... differential pressure sensor.

Key features

Probe length: 700 mm.
Air velocity at which measurement is possible: from 2 to 25 m/s.
Medium: air.
Medium temperature: 5...95°C [41...203°F].
Probe material: aluminium.
Weight: 0.34 kg.

Installation notes

Several probes must be used in rectangular ducts with a height greater than 300 mm. During commissioning, the 22ADP-.. differential pressure sensor must be configured as described in the documentation.
