Belimo 22ADP-15QB - air differential pressure sensor

Belimo 22ADP-15QB - air differential pressure sensor

Belimo
zł1,626.37
VAT included
zł1,322.25 tax excluded

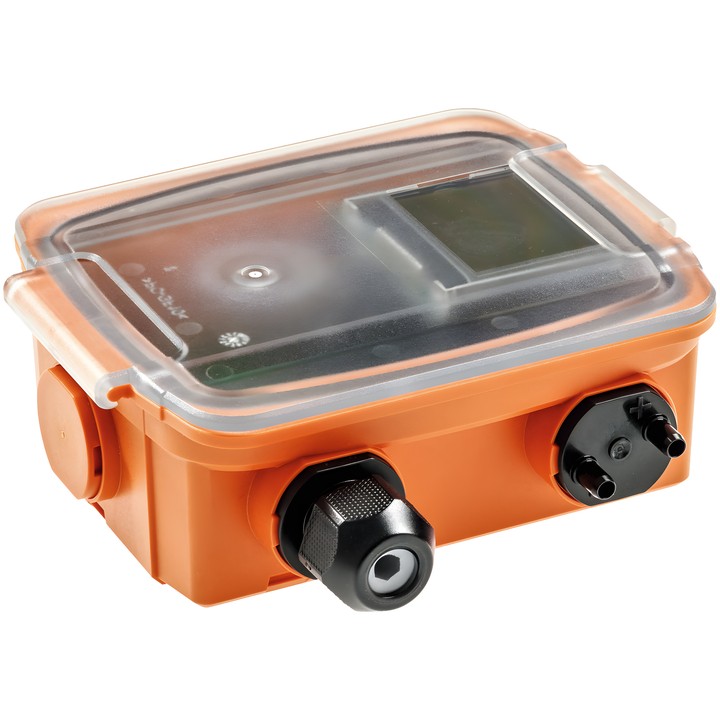

Belimo 22ADP-15QB air differential pressure sensor with a measuring range of -150...250 Pa, Modbus RTU communication, and 0...5 V and 0...10 V outputs. The model features an LCD and an Auto-Zero function.

AC/DC 24 V supply. The device allows selection of one of 8 measuring ranges and has an IP65 / NEMA 4X protection rating.

Delivery in approx. 14 days
Share

Belimo 22ADP-15QB – air differential pressure sensor

Transmitter for monitoring positive pressure, negative pressure, or differential pressure of air and other non-flammable, non-aggressive gases. The technical data sheet lists typical HVAC applications such as monitoring air filters and fan belts, as well as operation in differential pressure systems.

Key features

  • Pressure measuring range: -150...250 Pa; 8 selectable measuring ranges.
  • Measured values: differential pressure and volumetric flow rate.
  • Communication: Modbus RTU.
  • Two voltage outputs: 0...5 V or 0...10 V, min. resistance 10 kΩ; signal selected by switch.
  • Rated voltage: AC/DC 24 V.
  • Backlit LCD and Auto-Zero automatic zeroing function.
  • Protection rating: IP65 / NEMA 4X.
  • Electrical connection: detachable terminal block with spring terminals, max. 2.5 mm².

The set includes a mounting plate, a duct connection set with 2 plastic connections and a 2 m PVC tube, and mounting hardware.

  • Brand
    Belimo
  • Reference
    22ADP-15QB
  • EAN13
    7630498100888

  • Electrical connection
    Terminals
  • Measured values
    Differential pressure Volume flow
  • Output signal
    Modbus 0...5 V 0...10 V
  • Pressure measuring range
    -150...250 Pa | -0.6...1 inch WC
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V selectable by switch
  • Display type
    LCD
  • Output voltage range [Range]
    2 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • Communication
    Modbus RTU

Techniczna karta katalogowa

Download (3.69MB)

Instrukcja montażu

Download (1.56MB)

Techniczna karta katalogowa – 22ADP-15Q..

Download (3.69MB)

EU Declaration of Conformity – 22ADP-15QB

Download (39.81KB)

Environmental Declaration – 22ADP..

Download (72.08KB)
