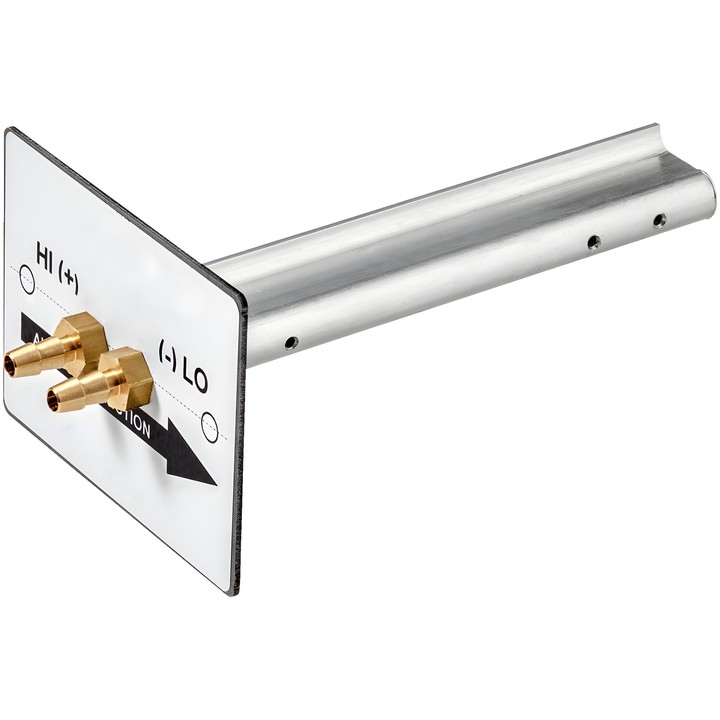

Belimo EXT-AC-R315 - air volume flow measurement probe

Name: Belimo EXT-AC-R315 - air volume flow measurement probe
Brand: Belimo
SKU: EXT-AC-R315
Price: 635.91 PLN
Availability: OutOfStock

Belimo

zł635.91

VAT included

zł517.00 tax excluded

Probe for measuring air volume flow in a circular duct. Probe length: 315 mm. Compatible with the 22ADP-... differential pressure sensor. Measurements are possible at air velocities from 2 to 25 m/s.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo EXT-AC-R315

Probe for measuring air volume flow in circular ducts, designed for use with the 22ADP-... differential pressure sensor.

Key features

Probe length: 315 mm.
Air velocity range for measurement: 2 to 25 m/s.
Medium: air.
Medium temperature: 5...95°C [41...203°F].
Probe material: aluminium.
Dimension B: 25 mm.
Weight: 0.18 kg.

During commissioning, accurate volume flow measurement requires settings to be configured on the 22ADP-... differential pressure sensor. The documentation specifies changing the fan manufacturer to AirConcepts, changing the k-factor, and adjusting the lower and upper volume flow values. The k-factor value is given in the installation instructions.
