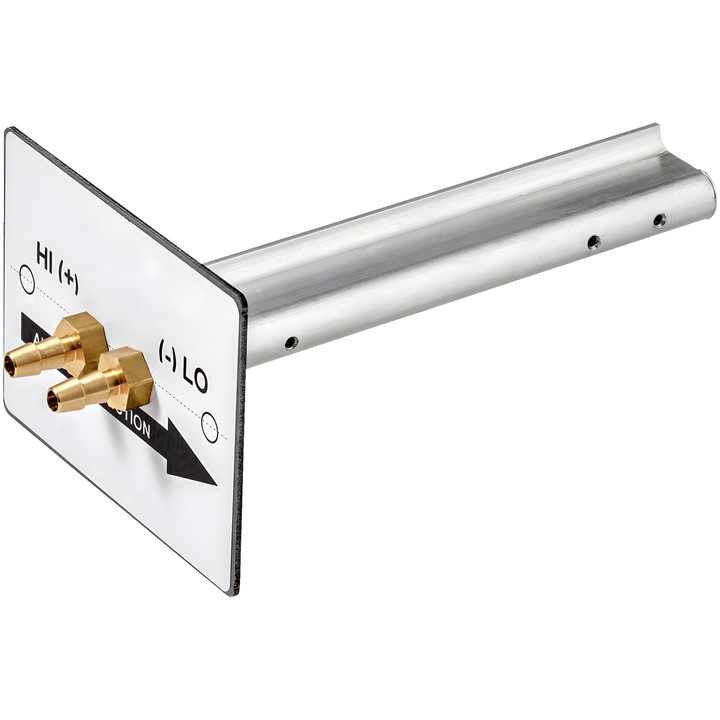

Belimo EXT-AC-R500 - air volume flow measurement probe

Name: Belimo EXT-AC-R500 - air volume flow measurement probe
Brand: Belimo
SKU: EXT-AC-R500
Price: 769.98 PLN
Availability: OutOfStock

Belimo

zł769.98

VAT included

zł626.00 tax excluded

Probe for measuring air volume flow in round ducts. Probe length: 500 mm. Works with the 22ADP-.. differential pressure sensor; measurements are possible at air velocities from 2 to 25 m/s.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo EXT-AC-R500 is a probe for measuring air volume flow in ducts with a round cross-section, used in combination with the 22ADP-.. differential pressure sensor.

Key features

Probe length: 500 mm.
Air velocity range in which measurements are possible: from 2 to 25 m/s.
Medium: air.
Medium temperature: 5...95°C [41...203°F].
Probe material: aluminium.
Dimension B: 25 mm.

During commissioning, enter the settings required on the 22ADP-.. differential pressure sensor for correct volume flow measurement. The documentation specifies setting the fan manufacturer to AirConcepts, changing the k-factor, and adjusting the lower and upper volume flow values.
