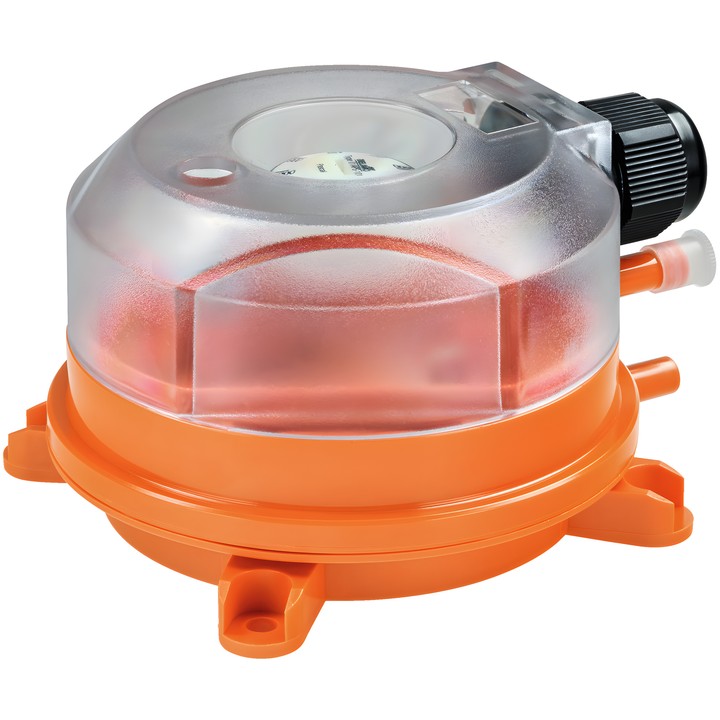

Belimo 01APS-104 - differential pressure switch

Name: Belimo 01APS-104 - differential pressure switch
Brand: Belimo
SKU: 01APS-104
Price: 109.15 PLN
Availability: BackOrder

Belimo

zł109.15

VAT included

zł88.74 tax excluded

Belimo 01APS-104 differential pressure switch for monitoring positive pressure, negative pressure and differential air pressure, as well as other non-flammable, non-aggressive gases. Measuring range: 500...2500 Pa. The device has an adjustable switching point and automatic reset.

The switching output has a maximum contact load of 1,0 A / AC 250 V. Supplied with 2 m PVC tube, two plastic duct connectors and screws.

Delivery in approx. 14 days

Belimo 01APS-104 differential pressure switch

The 01APS-104 is used to monitor positive pressure, negative pressure and differential air pressure, as well as other non-flammable, non-aggressive gases in stationary heating, ventilation and air conditioning systems. It has an adjustable switching point and automatic reset.

Key technical data

Measuring range: 500...2500 Pa.
Repeatability: ±1%, min. ±5 Pa; switching differential: 150 Pa.
Burst pressure: 10 kPa.
Output signal: switch; maximum contact load: 1,0 A / AC 250 V.
Electrical connection: terminals for 0.5...1.5 mm² wires.
Degree of protection: IP54 and NEMA 13.
Ambient and medium temperature: -20...85°C [-4...185°F].
Supplied with: 2 m PVC tube, 2 plastic duct connectors and screws.

Installation notes

Switching point specifications apply to vertical installation; installation with the pressure connectors pointing downwards is recommended. Installing the pressure switch upside down is not permitted.
