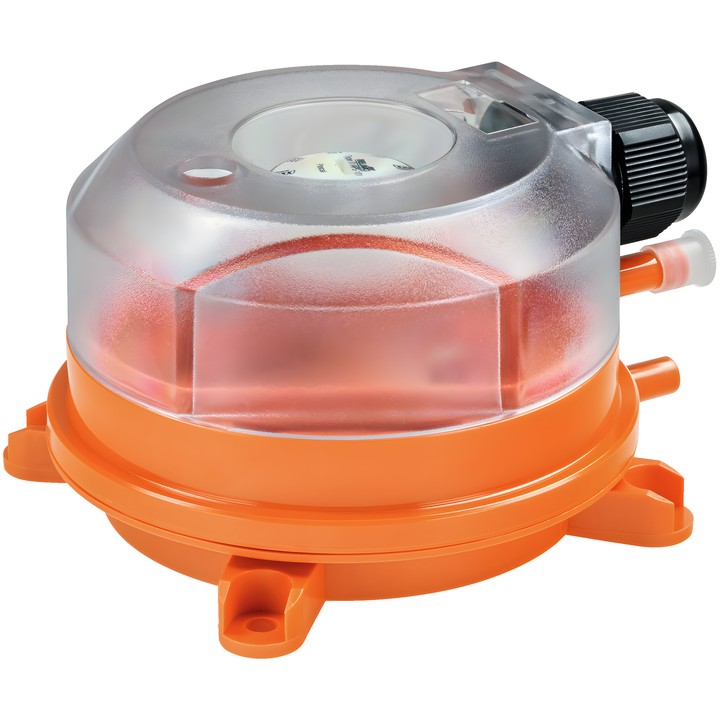

Belimo 01APS-10R - differential pressure switch

Name: Belimo 01APS-10R - differential pressure switch
Brand: Belimo
SKU: 01APS-10R
Price: 109.15 PLN
Availability: BackOrder

Belimo

zł109.15

VAT included

zł88.74 tax excluded

Belimo 01APS-10R differential pressure switch for monitoring positive pressure, vacuum and differential air pressure, as well as other non-flammable, non-aggressive gases. Measuring range: 20...300 Pa. The device features an adjustable switching point and automatic reset.

Protection rating IP54 / NEMA 13. Supplied with 2 m PVC tube, 2 plastic duct connectors and screws.

Delivery in approx. 14 days

Belimo 01APS-10R – differential pressure switch

Pressure switch for monitoring positive pressure, vacuum and differential pressure of air or other non-flammable, non-aggressive gases in stationary HVAC systems.

Key features and specifications

Measuring range: 20...300 Pa.
Repeatability: ±5%, min. ±5 Pa; switching differential: 10 Pa; burst pressure: 10 kPa.
Adjustable switching point and automatic reset.
Output signal: switch; max. contact load: 1,0 A / AC 250 V.
Electrical connection: terminals for 0.5...1.5 mm² conductors; cable entry with strain relief ø5...10 mm.
Protection rating: IP54 according to IEC/EN and NEMA 13 according to NEMA/UL.
Ambient and medium temperature: -20...85°C [-4...185°F].
Service life: min. 1'000'000 switching operations.

Installation and supplied accessories

Switching pressure specifications apply to vertical installation; the pressure connectors should be directed downwards. Installing the pressure switch upside down is not permitted.

Supplied with: 2 m PVC tube, 2 plastic duct connectors and screws.
