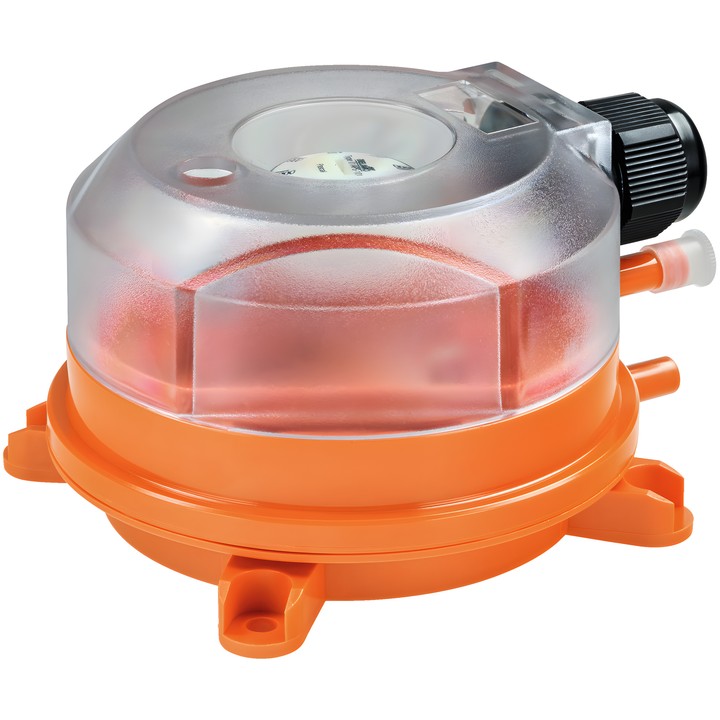

Belimo 01APS-10U - differential pressure switch

Name: Belimo 01APS-10U - differential pressure switch
Brand: Belimo
SKU: 01APS-10U
Price: 109.15 PLN
Availability: BackOrder

Belimo

zł109.15

VAT included

zł88.74 tax excluded

Belimo 01APS-10U differential pressure switch for monitoring positive pressure, negative pressure and differential air pressure, as well as other non-flammable, non-aggressive gases. Measuring range: 50...500 Pa. The device has an adjustable switching point and automatic reset.

Protection rating IP54 / NEMA 13. Supplied with 2 m PVC tube, 2 plastic duct connections and screws.

Delivery in approx. 14 days

Belimo 01APS-10U differential pressure switch

Designed for monitoring positive pressure, negative pressure and differential pressure in air and other non-flammable, non-aggressive gases in stationary HVAC systems and energy management applications. It has an adjustable switching point and automatic reset.

Key features

Measuring range: 50...500 Pa (0.20...2.00 inch WC).
Repeatability accuracy: ±2.5%, min. ±5 Pa; switching differential pressure: 20 Pa.
Burst pressure: 10 kPa.
Output signal: switch; max. contact load: 1,0 A / AC 250 V.
Electrical connection: terminals for 0.5...1.5 mm² wires; cable gland with strain relief ø5...10 mm.
Protection rating: IP54 / NEMA 13.
Ambient and medium temperature: -20...85°C [-4...185°F].
Supplied with: 2 m PVC tube, 2 plastic duct connections and screws.

Installation notes

Switching point specifications apply to vertical installation; pressure nipples should face downwards. Installing the pressure switch in an inverted position is not permitted.
