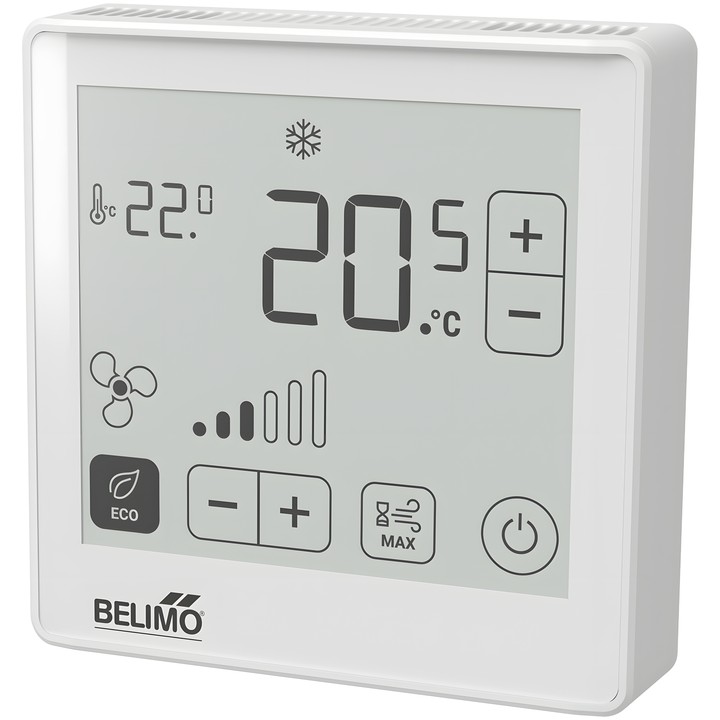

Belimo P-22RT-1900D-1 - room temperature controller

Name: Belimo P-22RT-1900D-1 - room temperature controller
Brand: Belimo
SKU: P-22RT-1900D-1
Price: 1146.36 PLN
Availability: OutOfStock

Belimo

zł1,146.36

VAT included

zł932.00 tax excluded

Active room temperature controller with a touch ePaper display. Measures temperature in the range 0...50°C [32...122°F] and communicates via MP-Bus.

AC/DC 24 V supply, two voltage outputs with a signal selectable via NFC: 0...5 V, 0...10 V or 2...10 V. White housing, RAL 9003.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo P-22RT-1900D-1

Active room controller for measuring temperature and setting the temperature setpoint. Equipped with a touch ePaper display, MP-Bus communication and two voltage outputs.

Key features

Measured value: temperature; measuring range 0...50°C [32...122°F].
Rated voltage: AC/DC 24 V.
Communication: MP-Bus.
Voltage outputs: 2 x 0...5 V, 0...10 V, 2...10 V; factory setting 0...10 V. Signal selected via NFC; minimum resistance 5 kΩ.
Touch ePaper display; device configuration via Belimo Assistant 2.
Electrical connection: spring terminals 0.25...1.5 mm².
IEC/EN protection rating: IP30.
Housing: PC, white, RAL 9003; surface-mounted.
Dimensions (HxWxD): 86x86x18 mm.

Brand

Belimo
Reference

P-22RT-1900D-1
EAN13

7630498110092

Electrical connection

Terminals
Measured values

Temperature
Output signal

0...5 V 0...10 V 2...10 V MP-Bus
AC/DC voltage

AC/DC 24 V
Temperature measuring range

0...50°C [32...122°F]
Active sensor output note

Output 0...5 V, 0...10 V (factory setting), 2...10 V selectable via NFC min. resistance 5 kΩ
Display type

Touchscreen ePaper display
Output voltage range [Range]

2 x 0...5 V, 0...10 V, 2...10 V (Type P-22RT-1900D-1) 3 x 0...5 V, 0...10 V, 2...10 V (Type P-22RTH-1900D-1, P-22RTM-1900D-1)
Communication

MP-Bus
