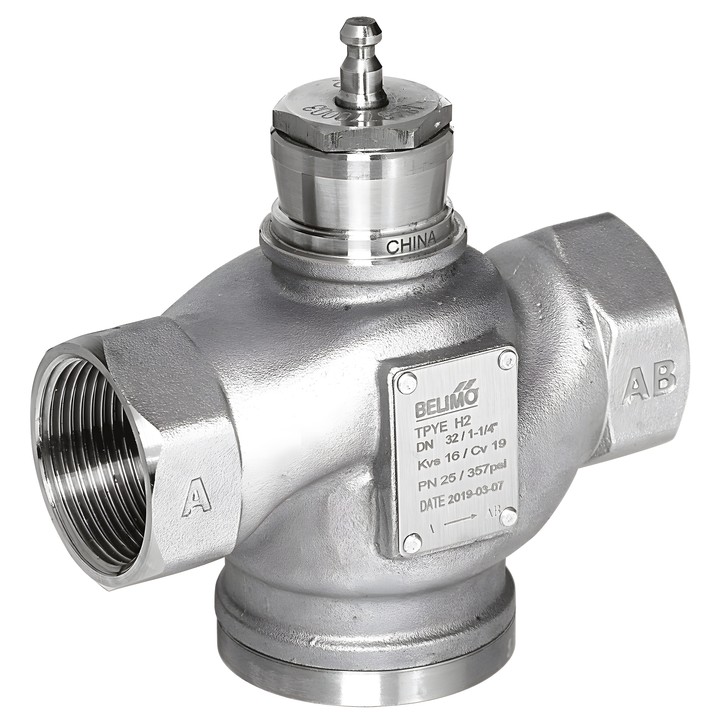

Belimo H232S-M - 2-way globe valve DN 32

Belimo H232S-M - 2-way globe valve DN 32

Belimo
zł1,601.04
VAT included
zł1,301.66 tax excluded

Belimo H232S-M is a 2-way globe valve made of AISI 304 stainless steel, with Rp 1 1/4" female thread. Specifications: DN 32, PN 25, Kvs 16 m³/h and medium temperature 0...130°C [32...266°F].

Delivery in approx. 14 days
Share

Belimo H232S-M – 2-way globe valve

The valve is designed for open and closed water systems and for water-side control in ventilation and heating systems.

Key features

  • DN 32, PN 25, ps 2500 kPa; Rp 1 1/4" female thread.
  • Kvs 16 m³/h; stroke 20 mm.
  • Medium: water or water with max. 50% vol. glycol; medium temperature 0...130°C [32...266°F].
  • Equal-percentage flow characteristic, optimised over the opening range.
  • Permissible leakage: max. 0.01% of the Kvs value.
  • Body, closing element, stem and seat made of AISI 304 stainless steel; stem seal PTFE+FFKM.
  • Mounting position: from vertical to horizontal relative to the stem; mounting with the stem pointing downwards is not permitted.

  • Brand
    Belimo
  • Reference
    H232S-M
  • EAN13
    7630498105487

  • Kvs
    16 m³/h
  • Medium
    Water, water with up to 50% vol. glycol.
  • Pattern
    2-way
  • Fluid temperature
    0...130°C [32...266°F]
  • Flow characteristic
    Equal-percentage characteristic
  • Permissible leakage
    Max. 0.01% of Kvs value
  • Pipe connection
    Internal thread

Techniczna karta katalogowa

Download (2.29MB)

Instrukcja montażu

Download (929.58KB)

Techniczna karta katalogowa – H2..S-..

Download (2.29MB)

EU Declaration of Conformity – H...S-...

Download (277.55KB)

Environmental Declaration – H2..S-..

Download (70.17KB)
