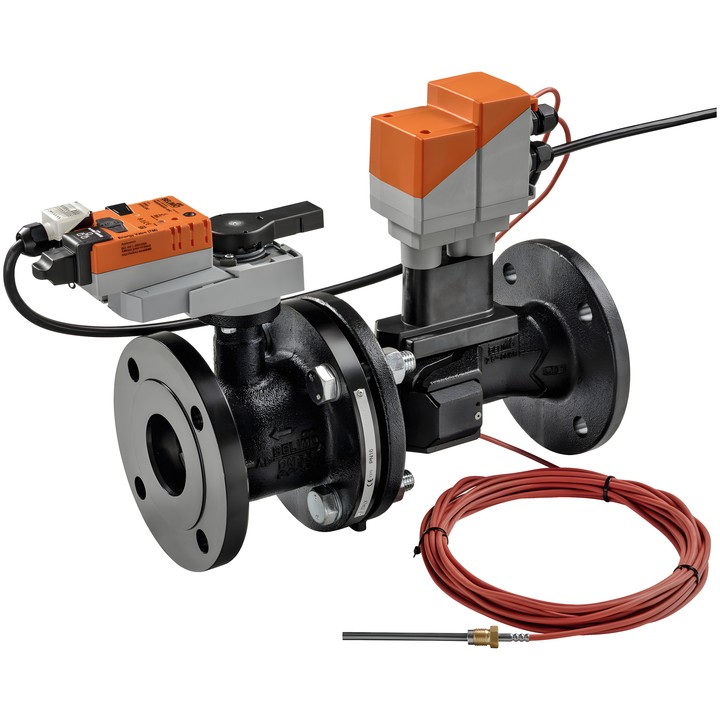

Belimo EV100F+BAC - 2-way Energy Valve control valve DN 100

Name: Belimo EV100F+BAC - 2-way Energy Valve control valve DN 100
Brand: Belimo
SKU: EV100F+BAC
Price: 19937.37 PLN
Availability: BackOrder

Belimo

zł19,937.37

VAT included

zł16,209.24 tax excluded

Belimo EV100F+BAC is a 2-way Energy Valve control valve with a PN 16 flange. It regulates flow or power based on sensor measurements and monitors power and energy. For DN 100, the nominal flow rate V'nom is 20 l/s (72 m³/h).

AC/DC 24 V supply. Supports BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus and Cloud, as well as glycol concentration monitoring.

Delivery in approx. 14 days

Belimo EV100F+BAC – Energy Valve DN 100

2-way control valve with sensor-based flow or power control, flow measurement, and power and energy monitoring. Designed for closed water systems and for water-side control in ventilation and heating systems.

Key features and specifications

DN 100, PN 16; pipe connection: flange.
V'nom 20 l/s (72 m³/h); V'max adjustable within 30...100% V'nom.
Medium: water, water with up to 50% vol. glycol; medium temperature -10...120°C [14...248°F].
Maximum differential pressure ∆pmax 340 kPa; closing pressure ∆ps 690 kPa.
Supply AC/DC 24 V; power consumption during operation 7 W, in standby position 5 W; cable sizing power 11 VA.
Control signal Y 2...10 V; communication: BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus, Cloud.
Ultrasonic flow measurement, glycol concentration monitoring and integrated Delta-T manager.
Data logging for 13 months; configuration via the integrated web server or ZTH EU.
Manual override by push-button, with option to lock; IEC/EN IP40 degree of protection.
