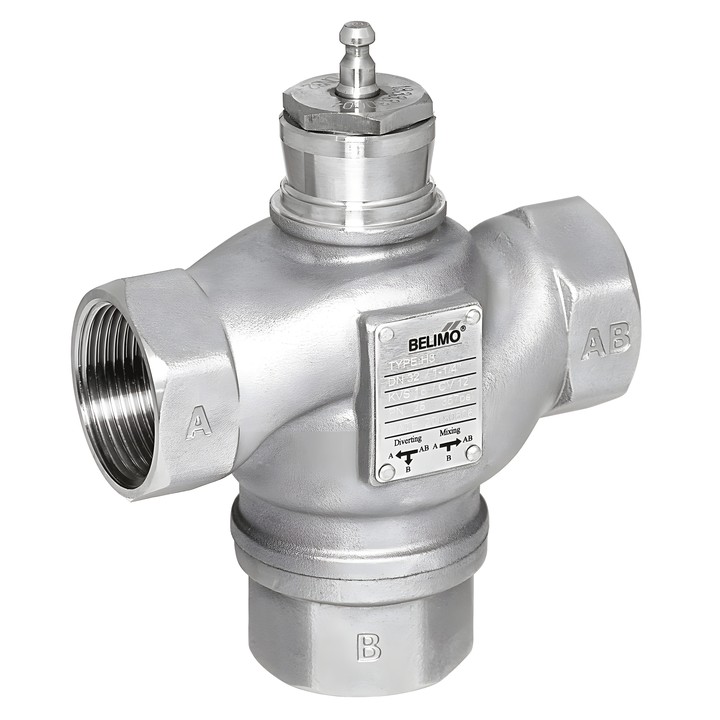

Belimo H325S-L - 3-way stainless steel globe valve

Name: Belimo H325S-L - 3-way stainless steel globe valve
Brand: Belimo
SKU: H325S-L
Price: 1538.35 PLN
Availability: BackOrder

zł1,538.35

VAT included

zł1,250.69 tax excluded

Belimo H325S-L is a 3-way globe valve DN 25, PN 25 with Rp 1" female thread and Kvs 10 m³/h. The body is made of AISI 304 stainless steel.

Designed for water or water with a maximum of 50% vol. glycol; fluid temperature is 0...130°C [32...266°F].

Delivery in approx. 14 days

Belimo H325S-L – 3-way globe valve

Stainless steel valve for water-side control in ventilation and heating systems, in open and closed water systems.

Design: 3-way; DN 25, PN 25.
Connection: Rp 1" female thread.
Kvs: 10 m³/h; stroke: 15 mm.
Body, closing element, stem and seat: AISI 304 stainless steel; stem seal: PTFE+FFKM.
Fluid: water, water with a maximum of 50% vol. glycol.
Fluid temperature: 0...130°C [32...266°F].
Flow characteristic: A – AB: equal percentage; B – AB: linear.
Permissible leakage: A – AB: max. 0.02% of Kvs value; B – AB: max. 0.02% of Kvs value.
Installation position: from vertical to horizontal in relation to the stem; installation with the stem pointing down is not permitted.
Flow is possible in both directions.

Maximum differential pressure and closing pressure depend on the installed globe valve actuator.

Kvs

10 m³/h
Medium

Water, water with up to 50% vol. glycol.
Pattern

3-way
Fluid temperature

0...130°C [32...266°F]
Flow characteristic

A – AB: equal-percentage; B – AB: linear
Permissible leakage

A – AB: max. 0.02% of Kvs value; B – AB: max. 0.02% of Kvs value
Pipe connection

Internal thread
