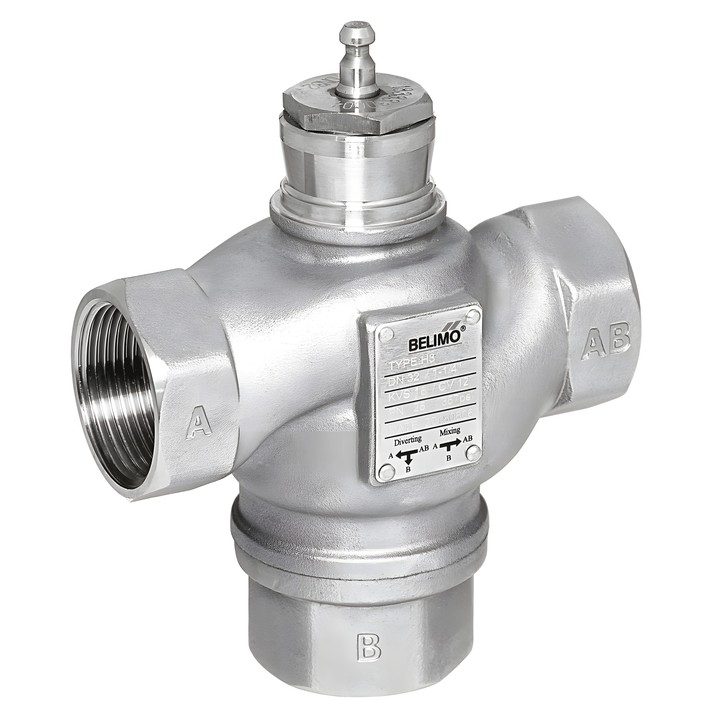

Belimo H340S-N - 3-way stainless steel globe valve

Name: Belimo H340S-N - 3-way stainless steel globe valve
Brand: Belimo
SKU: H340S-N
Price: 2175.48 PLN
Availability: BackOrder

Belimo

zł2,175.48

VAT included

zł1,768.68 tax excluded

Belimo H340S-N is a 3-way globe valve with an AISI 304 stainless steel body. It has an Rp 1 1/2" female threaded connection, DN 40, PN 25 and Kvs 25 m³/h.

Designed for water-side control in ventilation and heating systems. Medium temperature: 0...130°C [32...266°F].

Delivery in approx. 14 days

Belimo H340S-N – 3-way globe valve

Valve for open and closed water systems and water-side control in ventilation and heating systems. Operating medium: water or water with a maximum of 50% by volume glycol.

Key technical data

Type: 3-way; DN 40; PN 25; ps 2500 kPa.
Pipe connection: Rp 1 1/2" female thread.
Kvs: 25 m³/h; stroke: 20 mm.
Medium temperature: 0...130°C [32...266°F].
Flow characteristic: A – AB: equal percentage; B – AB: linear.
Permissible leakage: A – AB: max. 0.02% of the Kvs value; B – AB: max. 0.02% of the Kvs value.
Body, closing element, stem and seat: AISI 304 stainless steel; stem seal: PTFE+FFKM.

Permissible installation from vertical to horizontal with respect to the stem. Installation with the stem pointing downwards is not permitted. Flow direction can be either way. The maximum differential pressure and closing pressure depend on the installed globe valve actuator.

Brand

Belimo
Reference

H340S-N
EAN13

7630498105555

Kvs

25 m³/h
Medium

Water, water with up to 50% vol. glycol.
Pattern

3-way
Fluid temperature

0...130°C [32...266°F]
Flow characteristic

A – AB: equal-percentage; B – AB: linear
Permissible leakage

A – AB: max. 0.02% of Kvs value; B – AB: max. 0.02% of Kvs value
Pipe connection

Internal thread
