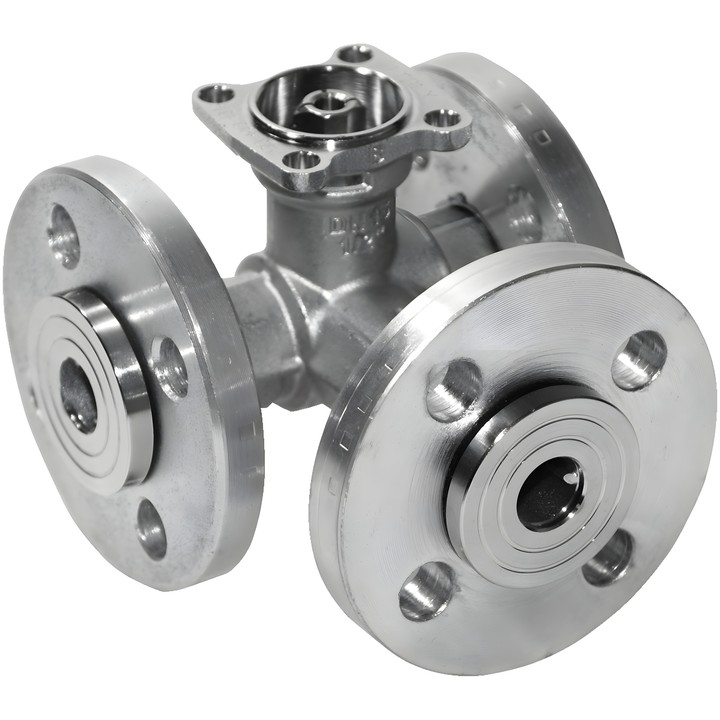

Belimo R7015R4-B1 is a 3-way control valve with a regulating plug and flanged connection. Parameters: DN 15, PN 6, Kvs 4 m³/h. Designed for closed water systems and water-side control in ventilation and heating systems.

Medium: water or water with up to 50% vol. glycol; medium temperature -10...100°C [14...212°F].

Delivery in approx. 14 days
Share

Belimo R7015R4-B1 – 3-way control valve

A control valve with a regulating plug for closed water systems, designed for water-side control in ventilation and heating systems. Flanged connection; nickel-plated brass body.

Key technical data

  • Design: 3-way; DN 15; PN 6; connection: flange.
  • Kvs: 4 m³/h; flow through bypass B – AB: 70% of Kvs.
  • Medium: water, water with up to 50% vol. glycol.
  • Medium temperature: -10...100°C [14...212°F].
  • Differential pressure: ∆pmax 100 kPa; closing pressure: 600 kPa.
  • Flow characteristic: A – AB: equal-percentage; B – AB: linear.
  • Leakage: A – AB: bubble-tight, leakage class A; B – AB: leakage class I, 1...2% of Kvs.
  • Rotation angle: 90°; operating range A – AB: 15...90°, B – AB: 15...70°.
  • Body: nickel-plated brass; flange for DN 15: galvanised steel.

At a medium temperature of -10...2°C, heating the valve stem or extending the valve neck is recommended. The permissible medium temperature may depend on the actuator type; limits are specified in the relevant actuator data sheets.

Permissible mounting position: from vertical to horizontal relative to the valve axis. Do not install with the axis pointing downwards. Observe the flow direction indicated by the arrow on the body.

  • Brand
    Belimo
  • Reference
    R7015R4-B1
  • EAN13
    7630498108709

  • Kvs
    4 m³/h
  • Medium
    Water, water with up to 50% vol. glycol.
  • Pattern
    3-way
  • Fluid temperature
    -10...100°C [14...212°F]
  • Fluid temperature, note
    For medium temperatures of -10...2°C, heating the shaft or extending the valve neck is recommended. The permissible medium temperature may be limited depending on the actuator type. Refer to the relevant actuator data sheets for restrictions.
  • Differential pressure
    ∆pmax 100 kPa
  • Closing pressure
    600 kPa
  • Flow characteristic
    A – AB: equal-percentage; B – AB: linear
  • Permissible leakage
    A – AB: bubble-tight, leakage class A; B – AB: leakage class I, 1...2% of Kvs value
  • Pipe connection
    Flange
