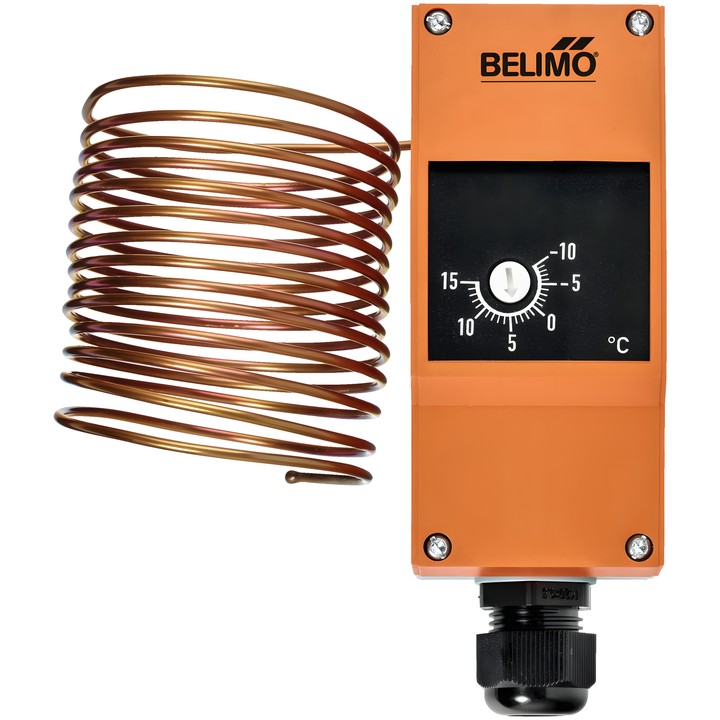

Belimo 01ATS-1050B - frost protection thermostat with capillary

Belimo 01ATS-1050B – frost protection temperature monitoring

The thermostat monitors the temperature of water and air heaters in stationary ventilation and air-conditioning systems. Frost protection alarm is provided by a single-pole SPDT changeover contact. The 01ATS-1050B version has a 6 m capillary and automatic reset: when the temperature rises, the microswitch returns to its initial position.

Key features and specifications

• Capillary: 6 m; capillary material: copper.
• Measuring range: -10...15°C [15...60°F]; factory setting: 5°C [41°F].
• Switching differential: 1.5 K (±1 K tolerance); setting accuracy: ±2 K.
• Contact rating: AC 230 V 16 (2.5) A in position 1-2; AC 230 V 2 (0.4) A in position 1-4; DC 230 V 0.25 A.
• Electrical connection: spring terminals, max. 2.5 mm²; M20x1.5 mm cable gland for cable ø6...12 mm.
• IEC/EN protection rating: IP65.
• Included: mounting kit with 6 clips, type A-22D-A08.

If the temperature along a 300 mm section of the capillary falls below the set value, circuit 1-2 opens and circuit 1-4 closes. The ambient temperature at the housing must exceed the set switching point by more than 2 K.
