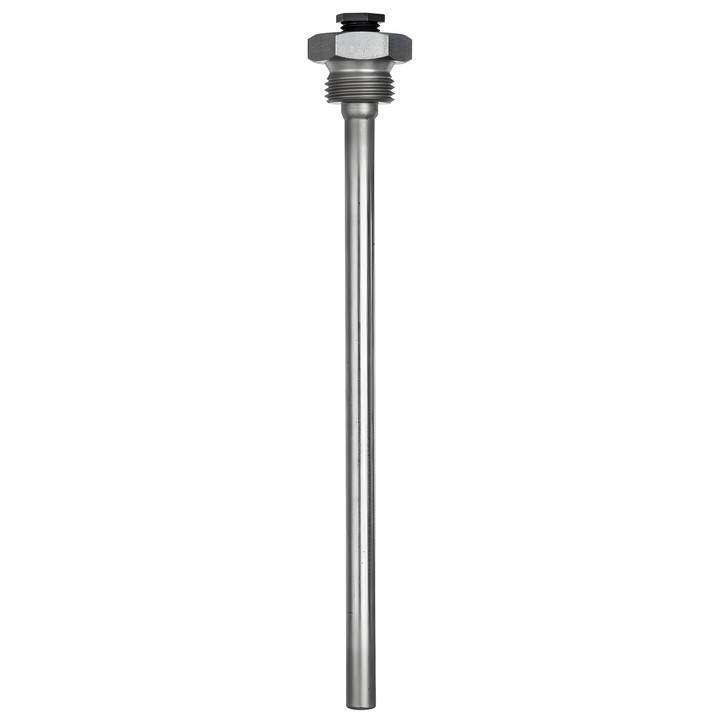

Belimo A-22P-A08 - stainless steel immersion well

Belimo A-22P-A08 - stainless steel immersion well

Belimo
zł107.67
VAT included
zł87.54 tax excluded

Stainless steel immersion well for installing temperature sensors 01DT.., 22DT.., 01CT.. and 22CT... Well length 100 mm, diameter 9 mm; G 1/2" external thread and integrated compression fitting.

Delivery in approx. 14 days
Share

Belimo A-22P-A08 – immersion well

Stainless steel well for installing immersion and cable temperature sensors 01DT.., 22DT.., 01CT.. and 22CT... Equipped with a G 1/2" external thread and an integrated compression fitting.

Key technical data

  • Well length: 100 mm; diameter: 9 mm; SW27.
  • Maximum flow velocity: 13.6 m/s.
  • Medium: water, water-glycol mixture; PN 40.
  • Medium temperature: max. 200°C.
  • Well materials: turned part V4A (1.4404), tube V4A (1.4571); pressure screw: polyamide (PA66/GF25).

  • Brand
    Belimo
  • Reference
    A-22P-A08
  • EAN13
    7630498101687

Techniczna karta katalogowa

Download (467.24KB)

Techniczna karta katalogowa – A-22P-A.. G VA

Download (470.67KB)
