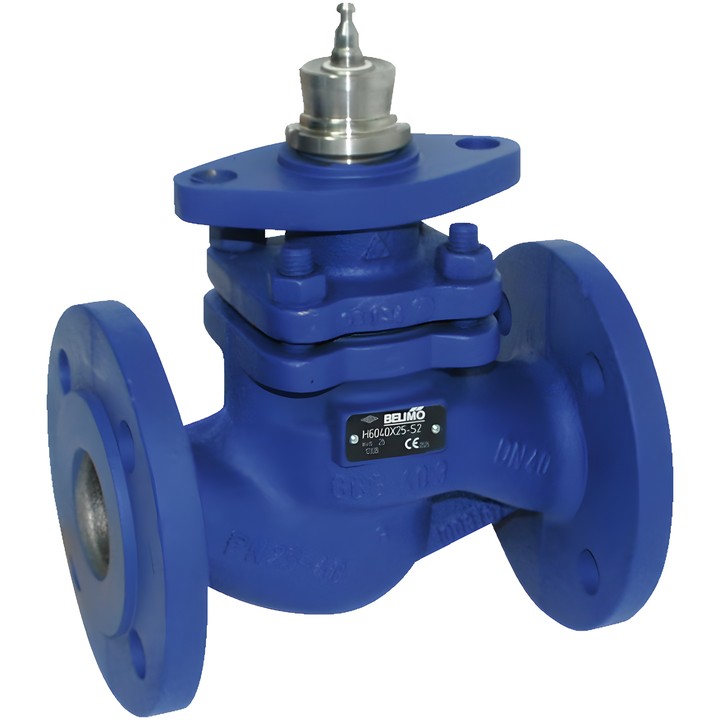

Belimo H6015X4-S2 - 2-way globe valve DN 15

Name: Belimo H6015X4-S2 - 2-way globe valve DN 15
Brand: Belimo
SKU: H6015X4-S2
Price: 2265.41 PLN
Availability: BackOrder

Belimo

zł2,265.41

VAT included

zł1,841.80 tax excluded

Belimo H6015X4-S2 is a 2-way globe valve with flanged connection, DN 15, PN 25 and Kvs 4 m³/h. Designed for modulating control on the water side of ventilation and heating systems.

Suitable for water and steam (Δp/P1 <0,4) and water with a maximum of 50% vol. glycol. Medium temperature: 5...150°C [41...302°F].

Delivery in approx. 14 days

Belimo H6015X4-S2 – 2-way globe valve

Valve for closed water and steam systems in non-critical applications and for modulating control on the water side of ventilation and heating systems. The flanged connection complies with ISO 7005-2.

Key features

DN 15, PN 25, Kvs 4 m³/h.
Stroke: 15 mm; n(gl): 3; Sv min.: 50.
Medium: water and steam (Δp/P1 <0,4), water with a maximum of 50% vol. glycol.
Medium temperature: 5...150°C [41...302°F]; up to 2500 kPa at 120°C and up to 2430 kPa at 150°C.
Flow characteristic: equal percentage (VDI/VDE 2173), optimised in the opening range.
Permissible leakage: max. 0,05% of the Kvs value.
Body: EN-GJS-400-18-LT (GGG 40.3), with protective coating; plug, stem and seat: stainless steel; stem seal: PTFE V-ring.
Permissible mounting position: from vertical to horizontal relative to the stem; installation with the stem pointing downwards is not permitted.
The flow direction must follow the arrow on the body.

Maximum differential pressure and close-off pressure depend on the globe valve actuator installed.
