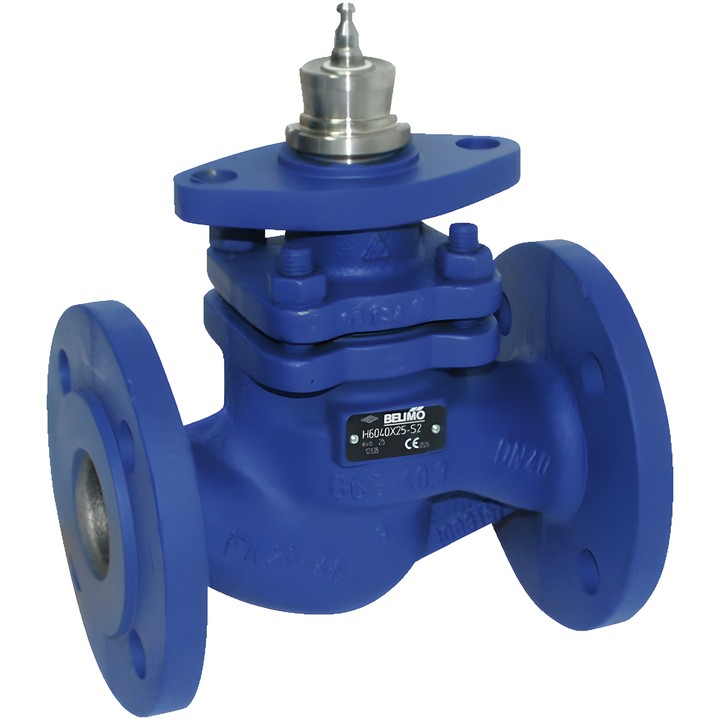

Belimo H6020X4-S2 - 2-way globe valve

Name: Belimo H6020X4-S2 - 2-way globe valve
Brand: Belimo
SKU: H6020X4-S2
Price: 2530.13 PLN
Availability: BackOrder

Belimo

zł2,530.13

VAT included

zł2,057.02 tax excluded

Belimo H6020X4-S2 2-way flanged globe valve, DN 20, PN 25, Kvs 4 m³/h. Designed for water-side control in ventilation and heating systems and for closed water and steam systems in non-critical applications.

Delivery in approx. 14 days

Belimo H6020X4-S2 – 2-way globe valve

Valve with flanged connection, designed for water-side control in ventilation and heating systems and for closed water and steam systems in non-critical applications.

Key technical data

DN 20, PN 25; flanged connection in accordance with ISO 7005-2.
Kvs 4 m³/h; stroke 15 mm; Sv min. 100.
Medium: water and steam (Δp/P1 <0,4) and water with a maximum of 50% vol. glycol.
Medium temperature: 5...150°C [41...302°F]; 120°C up to 2500 kPa, 150°C up to 2430 kPa.
Flow characteristic: equal percentage, optimised over the opening range.
Permissible leakage: max. 0,05% of the Kvs value.
Body: EN-GJS-400-18-LT (GGG 40.3); closing element, stem and seat in stainless steel; stem seal: PTFE V-ring.

Permitted mounting position: from vertical to horizontal relative to the stem. Installation with the stem pointing downwards is not permitted. Maximum differential pressure and closing pressure depend on the actuator installed.
