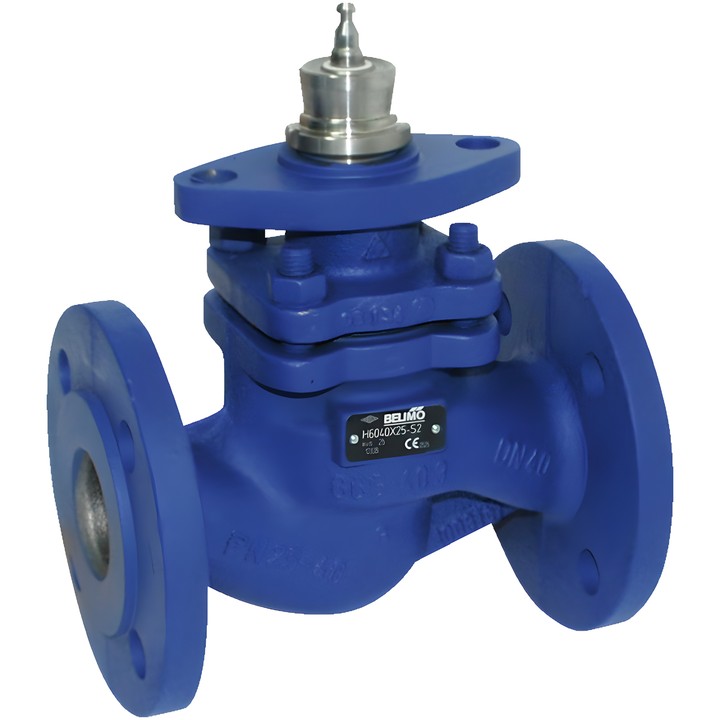

Belimo H6025X10-S2 - 2-way globe valve DN 25

Name: Belimo H6025X10-S2 - 2-way globe valve DN 25
Brand: Belimo
SKU: H6025X10-S2
Price: 2712.52 PLN
Availability: BackOrder

Belimo

zł2,712.52

VAT included

zł2,205.30 tax excluded

Belimo H6025X10-S2 is a 2-way globe valve with flanged connection, PN 25 and Kvs 10 m³/h. Designed for water-side control in ventilation and heating systems.

Medium temperature is 5...150°C [41...302°F]. Permitted media are water and steam (Δp/P1 <0,4), and water with up to 50% vol. glycol.

Delivery in approx. 14 days

Belimo H6025X10-S2 – 2-way globe valve

Flanged valve DN 25, PN 25 for water and steam systems in closed circuits, in the non-critical range. Designed for continuous water-side control in ventilation and heating systems.

Key features

Kvs: 10 m³/h; stroke: 15 mm; Sv min.: 100.
Medium: water and steam (Δp/P1 <0,4), water with up to 50% vol. glycol.
Medium temperature: 5...150°C [41...302°F]; 120°C up to 2500 kPa, 150°C up to 2430 kPa.
Flow characteristic: equal percentage (VDI/VDE 2173), optimised in the opening range.
Permitted leakage: max. 0,05% of Kvs value.
Flanged connection in accordance with ISO 7005-2.
Body: EN-GJS-400-18-LT (GGG 40.3), with protective coating; plug, stem and seat made of stainless steel; stem seal: PTFE V-ring.

Permitted mounting position: from vertical to horizontal in relation to the stem; installation with the stem pointing downwards is not permitted. Observe the flow direction indicated by the arrow on the body. Maximum differential pressure and closing pressure depend on the actuator installed.
