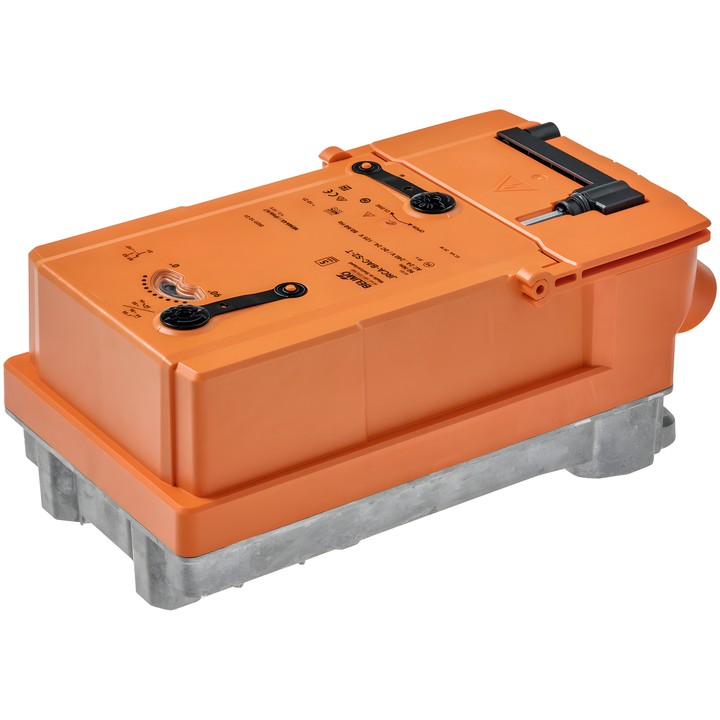

Belimo JRCA-S2-T - rotary actuator for dampers

Belimo JRCA-S2-T - rotary actuator for dampers

Belimo
zł2,662.51
VAT included
zł2,164.64 tax excluded

Belimo JRCA-S2-T rotary actuator for dampers, with a torque of 90 Nm. Supply voltage AC 24...240 V / DC 24...125 V, On/Off or 3-point control, and 2x SPDT.

Running time is 35 s / 90°. The actuator has an IP66/67 protection rating and terminal connections.

Delivery in approx. 14 days
Share

Belimo JRCA-S2-T – rotary actuator for dampers

Electronic rotary actuator for dampers in stationary heating, ventilation and air-conditioning systems. Enables On/Off or 3-point control.

Key features

  • Torque: 90 Nm.
  • Rated voltage: AC 24...240 V / DC 24...125 V; frequency 50/60 Hz.
  • Motor running time: 35 s / 90°; adjustable running time: 20...120 s.
  • Two integrated auxiliary switches: 2x SPDT; one set to 10°, the other adjustable within 0...90° (factory setting 85°).
  • Power consumption: 20 W during operation and 7 W in the rest position.
  • Terminal connections 0.5...2.5 mm², copper conductors only.
  • IEC/EN protection rating: IP66/67; NEMA 4X.
  • Mounting flange F07 (F05/F10 only with accessories).
  • Mechanical position indicator and manual operation using a crank.
  • Internal heater to prevent condensation; parameter configuration via NFC using Belimo Assistant 2.

Installation and electrical connection may only be carried out by qualified specialists. The actuator requires connection of a protective earth conductor (PE).

  • Brand
    Belimo
  • Reference
    JRCA-S2-T
  • EAN13
    7630498109713

  • AC/DC voltage
    AC 24...240 V / DC 24...125 V
  • Auxiliary switch connection
    Terminals 0.5...2.5 mm², copper conductors only
  • Power consumption (running)
    20 W
  • Power consumption (holding)
    7 W
  • Rated power
    at 24 V 20 VA / at 240 V 55 VA
  • Power supply control connection
    Terminals 0.5...2.5 mm², copper conductors only
  • Control type
    Open/close, 3-point
  • Protection rating
    IP66/67
  • NEMA protection rating
    NEMA 4X
  • Enclosure type
    UL Enclosure Type 4X
  • Auxiliary contacts
    2x SPDT

Techniczna karta katalogowa

Download (2.43MB)

Instrukcja montażu

Download (6.23MB)

Techniczna karta katalogowa – JRCA-S2-T

Download (2.43MB)

EU Declaration of Conformity – JRCA-S2-T

Download (327.43KB)

Environmental Declaration – JR..

Download (72.12KB)
