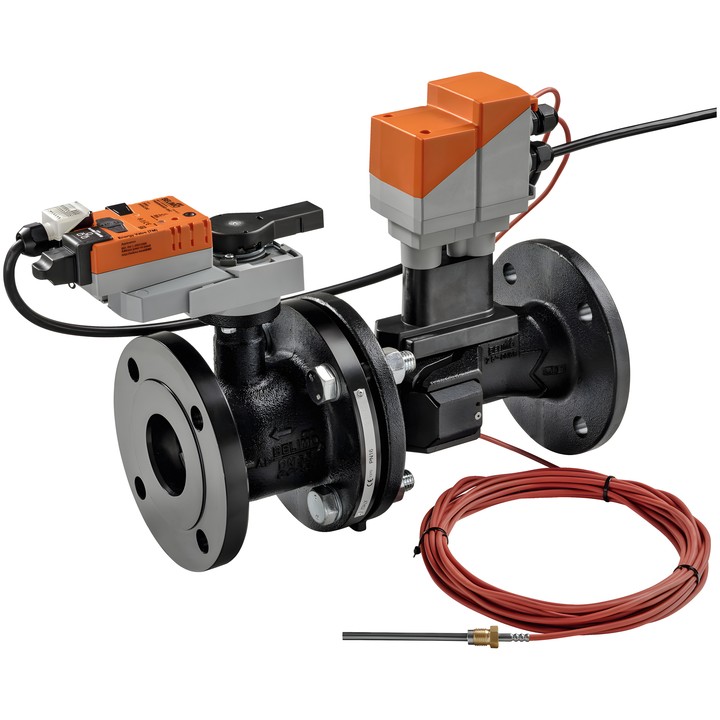

Belimo EV150F+BAC - 2-way Energy Valve control valve

Name: Belimo EV150F+BAC - 2-way Energy Valve control valve
Brand: Belimo
SKU: EV150F+BAC
Price: 31728.18 PLN
Availability: BackOrder

Belimo

zł31,728.18

VAT included

zł25,795.27 tax excluded

Belimo EV150F+BAC is a 2-way Energy Valve control valve with measurement-based flow or power control. The DN 150, PN 16 version has a flanged connection and V'nom 45 l/s.

The device monitors power, energy and glycol concentration and supports BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus and Cloud.

Delivery in approx. 14 days

Belimo EV150F+BAC – Energy Valve DN 150

2-way control valve for closed water systems, designed for modulating control on the water side of ventilation and heating systems. The flow sensor enables flow or power control; the device also monitors power and energy.

Key features

DN 150, PN 16, flanged connection; V'nom 45 l/s (162 m³/h).
Adjustable V'max: 30...100% V'nom.
Fluid: water or water with up to 50% by volume glycol; fluid temperature -10...120°C [14...248°F].
∆pmax 340 kPa; closing pressure ∆ps 690 kPa.
Power supply AC/DC 24 V; power consumption during operation 7 W, in standby position 5 W; for cable sizing 11 VA.
Control signal Y 2...10 V; communication BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus, Cloud.
Glycol concentration monitoring, integrated delta T manager and data logging for 13 months.
Built-in web server; manual override by pushbutton, with option to lock it.
Degree of protection IEC/EN IP40; protection class IEC/EN III, Safety Extra-Low Voltage (SELV).
