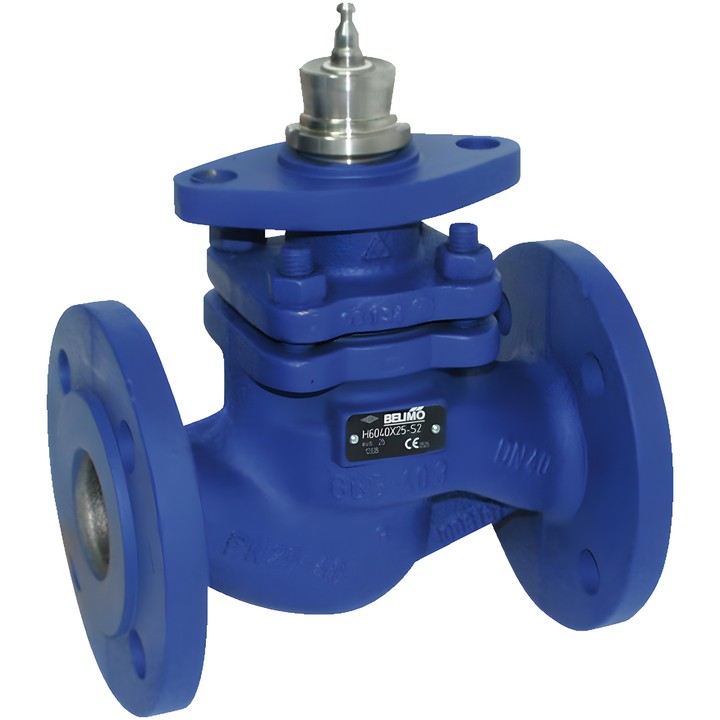

Belimo H6025X6P3-S2 - DN 25 2-way globe valve

Name: Belimo H6025X6P3-S2 - DN 25 2-way globe valve
Brand: Belimo
SKU: H6025X6P3-S2
Price: 2712.52 PLN
Availability: BackOrder

Belimo

zł2,712.52

VAT included

zł2,205.30 tax excluded

Belimo H6025X6P3-S2 2-way globe valve with flanged connection, DN 25, PN 25 and Kvs 6.3 m³/h. Designed for control in closed water and steam systems within the range specified in the documentation.

Medium temperature: 5...150°C [41...302°F]. Equal-percentage flow characteristic; permissible leakage: max. 0.05% of Kvs value.

Delivery in approx. 14 days

Belimo H6025X6P3-S2 – 2-way globe valve

Flanged valve for control on the water side of ventilation and heating systems, and in closed water and steam systems within the range specified by the manufacturer.

Key technical data

Design: 2-way; DN 25; PN 25.
Pipe connection: flange, according to ISO 7005-2.
Kvs: 6.3 m³/h; stroke: 15 mm.
Medium: water and steam (Δp/P1 <0,4), water with max. 50% by volume glycol.
Medium temperature: 5...150°C [41...302°F]; 120°C up to 2500 kPa, 150°C up to 2430 kPa.
Flow characteristic: equal-percentage, optimised within the opening range.
Permissible leakage: max. 0.05% of Kvs value.
Valve body: EN-GJS-400-18-LT (GGG 40.3), with protective coating; closing element, stem and seat: stainless steel; stem seal: PTFE V-ring.

Installation notes

Installation is permitted from vertical to horizontal relative to the stem; installation with the stem pointing downwards is not permitted. Observe the flow direction indicated by the arrow on the body. Maximum differential pressure and closing pressure depend on the actuator installed.
