Belimo H6100R - 2-way globe valve

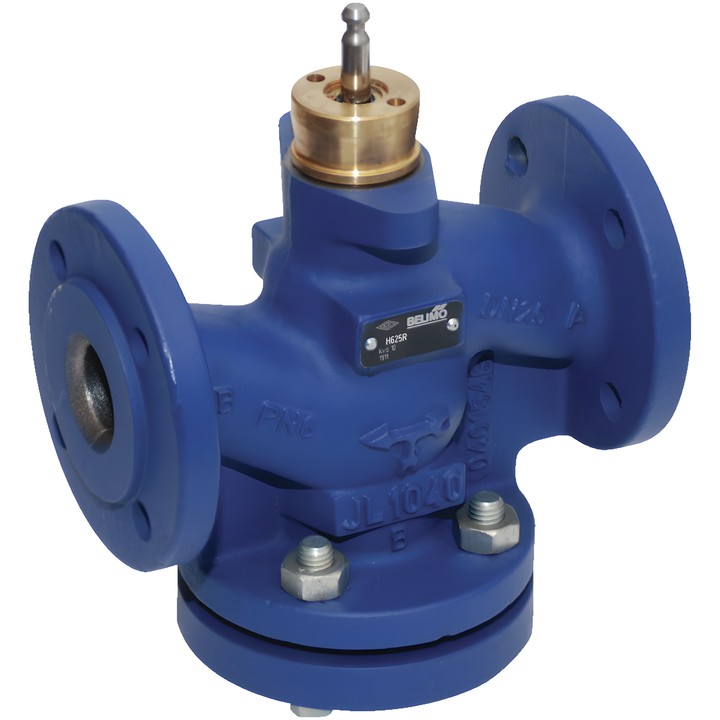

Belimo H6100R globe valve

2-way control valve for closed water systems. The flanged connection is manufactured in accordance with ISO 7005-2.

Key technical data

• Nominal diameter: DN 100; nominal pressure: PN 6; ps 600 kPa.
• Kvs: 145 m³/h; stroke: 30 mm.
• Fluid: water, water with up to 50% vol. glycol.
• Fluid temperature: -10...120°C [14...248°F]. Stem heating is required when the fluid temperature is -10...2°C.
• Flow characteristic: equal percentage (VDI/VDE 2173), optimised in the opening range.
• Permissible leakage: max. 0.05% of the Kvs value.
• Body: EN-GJL-250 (GG 25) with protective coating; closing element and stem: stainless steel; stem seal: EPDM O-ring.
• Permissible mounting position: from vertical to horizontal relative to the stem; installation with the stem pointing downwards is not permitted.

Maximum differential pressure and close-off pressure depend on the installed globe valve actuator. During installation, observe the flow direction indicated by the arrow on the body.
