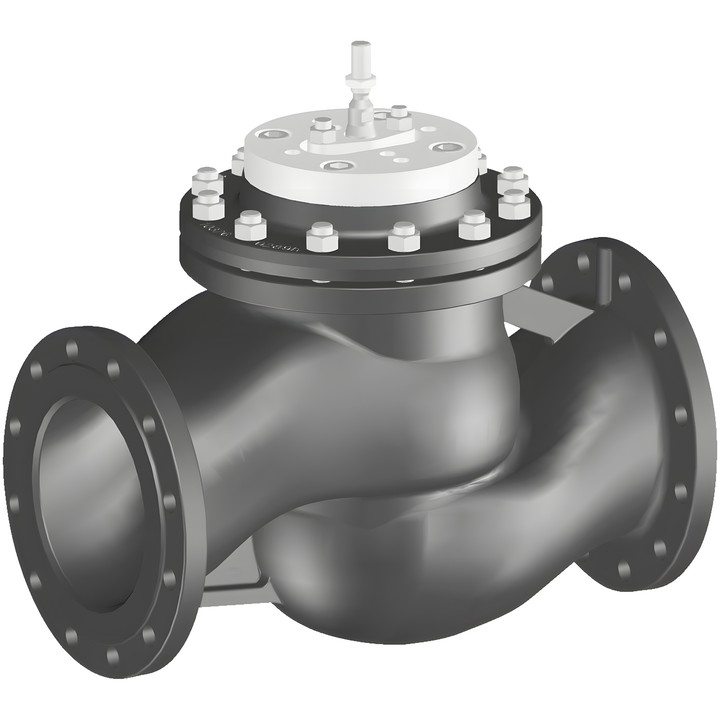

Belimo H6250W1000-S7 - 2-way globe valve DN 250

Name: Belimo H6250W1000-S7 - 2-way globe valve DN 250
Brand: Belimo
SKU: H6250W1000-S7
Price: 53300.12 PLN
Availability: BackOrder

Belimo

zł53,300.12

VAT included

zł43,333.43 tax excluded

Belimo H6250W1000-S7 is a 2-way globe valve with PN 16 flanged connection. It has DN 250, Kvs 1000 m³/h and a 65 mm stroke.

Designed for closed-loop water systems and water-side control in ventilation and heating systems. Permitted media are water or water with max. 50% by volume glycol at a temperature of 5...120°C [41...248°F].

Delivery in approx. 14 days

Belimo H6250W1000-S7 globe valve

2-way flanged valve for control in closed-loop water systems and on the water side of ventilation and heating systems.

Key features

DN 250, PN 16, Kvs 1000 m³/h; 65 mm stroke.
Media: water or water with max. 50% by volume glycol; medium temperature 5...120°C [41...248°F].
Equal-percentage characteristic (VDI/VDE 2173), optimised in the opening range.
Permissible leakage: max. 0.05% of the Kvs value.
Flanged connection in accordance with ISO 7005-2.
Body made of EN-GJL-250 (GG 25) with protective coating; plug, stem and seat made of stainless steel; EPDM stem seal.
Permitted installation position: from vertical to horizontal relative to the stem; installation with the stem pointing downwards is not permitted.

Maximum differential pressure and closing pressure depend on the installed globe valve actuator.
