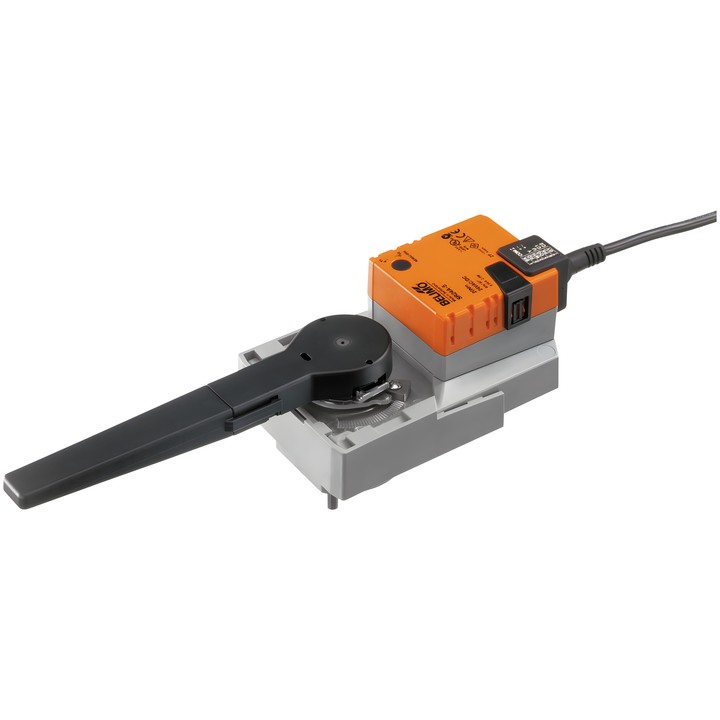

Belimo SR24A-SR-5 - rotary actuator for valves
Price:
zł1,221.06
VAT included
zł992.73 tax excluded
Belimo SR24A-SR-5 rotary actuator for rotary valves and dampers. Torque 20 Nm, AC/DC 24 V supply and 2...10 V modulating control.
Operating time is 90 s / 90°. The actuator provides a 2...10 V position feedback signal and manual adjustment by push-button.
Belimo SR24A-SR-5 rotary actuator
Actuator for rotary valves and dampers, controlled by a Y 2...10 V signal. The U 2...10 V feedback signal is used for electrical indication of valve position.
Key features and specifications
- Torque: 20 Nm; operating time: 90 s / 90°.
- Supply: AC/DC 24 V, 50/60 Hz.
- 2...10 V modulating control and 2...10 V position feedback signal.
- Power consumption during operation: 2.5 W; in standby: 0.4 W; for cable sizing: 5 VA.
- Power and control connection: Cable 1 m, 4x 0.75 mm².
- Manual adjustment by push-button, with the option to lock it.
- Mechanical position indicator and adjustable rotation angle with mechanical stops.
- Connection flange F05; degree of protection IEC/EN IP54; protection class IEC/EN III, Safety Extra-Low Voltage (SELV).
-
Brand
-
ReferenceSR24A-SR-5
-
EAN137630498114854
-
AC/DC voltageAC/DC 24 V
-
Power consumption (running)2.5 W
-
Power consumption (holding)0.4 W
-
Rated power5 VA
-
Power supply control connectionCable 1 m, 4x 0.75 mm²
-
Control typeDC 2...10 V
-
Protection ratingIP54
-
NEMA protection ratingNEMA 2
-
Enclosure typeUL Enclosure Type 2
