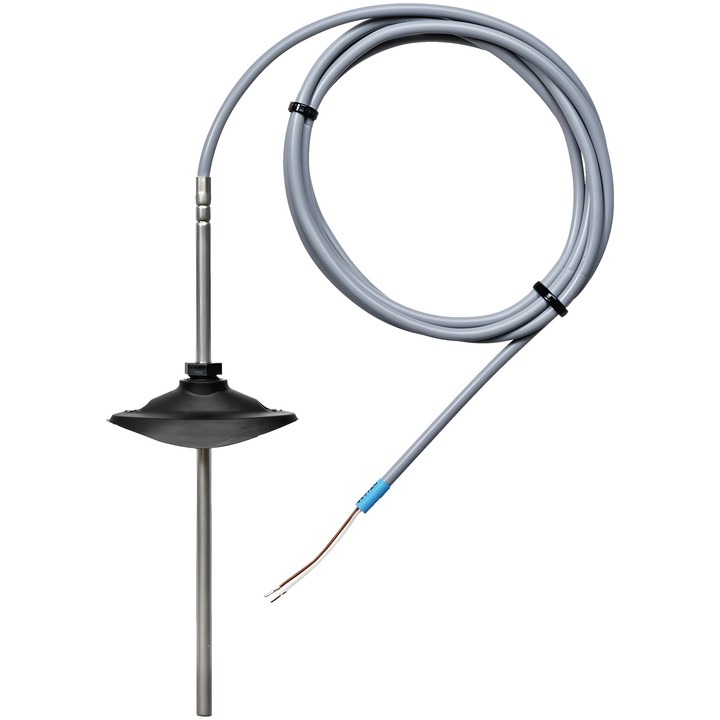

Belimo 01CT-1DLF - cable temperature sensor with mounting flange

Name: Belimo 01CT-1DLF - cable temperature sensor with mounting flange
Brand: Belimo
SKU: 01CT-1DLF
Price: 102.88 PLN
Availability: BackOrder

Belimo

zł102.88

VAT included

zł83.64 tax excluded

Passive cable temperature sensor for measuring temperature in air ducts. Model 01CT-1DLF has a Ni1000TK5000 output signal and a probe 100 mm long and 6 mm in diameter.

Supplied with a 2 m, 2-wire cable. The probe mounting flange is included.

Delivery in approx. 14 days

Belimo 01CT-1DLF – temperature sensor for air ducts

Passive cable sensor with a mounting flange, designed to measure temperature in air ducts.

Key features

Output signal: Ni1000TK5000.
Stainless steel probe: length 100 mm, diameter 6 mm.
Electrical connection: 2 m, 2-wire cable; PVC cable.
Temperature measuring range: -35...100°C [-30...210°F].
Degree of protection: IP67 (IEC/EN) and NEMA 4X (NEMA/UL).
Includes a plastic mounting flange for a 6 mm probe, type A-22D-A03.

For Ni1000TK5000, the measuring current is specified as <0.3 mA @ 0°C [32°F]. In passive 2-wire sensors, the supply current affects measurement accuracy and should therefore not exceed the specified measuring current.
