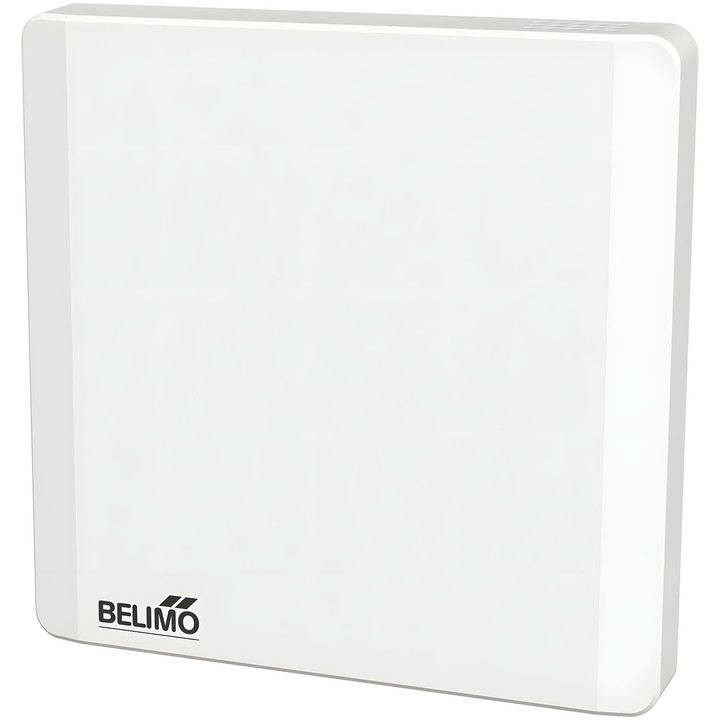

Belimo 01RT-1F-0 - passive room temperature sensor

Belimo 01RT-1F-0 - passive room temperature sensor

Belimo
zł72.94
VAT included
zł59.30 tax excluded

Passive sensor for measuring room air temperature, with an NTC1k8 output signal. The measuring range is 0...50°C [32...122°F].

Polycarbonate (PC) housing, white, RAL 9003. IEC/EN protection rating IP30.

Delivery in approx. 14 days
Share

Belimo 01RT-1F-0 passive room temperature sensor

The 01RT-1F-0 measures room air temperature. It has a passive NTC1k8 output and a spring terminal for wires of 0.5...1.5 mm².

Key features

  • Measured variable: temperature; medium: air.
  • Output signal: NTC1k8.
  • Measuring range: 0...50°C [32...122°F].
  • Measuring current for NTC1k8: <0.1 mA @ 25°C [77°F].
  • Accuracy for NTC1k8: ±0.5°C @ 25°C [±0.9°F @ 77°F].
  • Time constant τ (63%) in a room: typically 360 s.
  • IEC/EN protection rating: IP30; IEC/EN protection class: III, PELV.
  • Housing: PC, white, RAL 9003.
  • Cable entry openings at the rear and at the top and bottom of the housing.

  • Brand
    Belimo
  • Reference
    01RT-1F-0
  • EAN13
    7630498117718

  • Electrical connection
    Terminals
  • Measured values
    Temperature
  • Output signal
    NTC1k8
  • Passive temperature sensor output
    NTC1k8

Techniczna karta katalogowa

Download (1.39MB)

Instrukcja montażu

Download (757.06KB)

Techniczna karta katalogowa – 01RT-1..

Download (1.39MB)

EU Declaration of Conformity – 01RT-1F-0

Download (37.55KB)

Environmental Declaration – 01RT../22RT..

Download (71.81KB)
