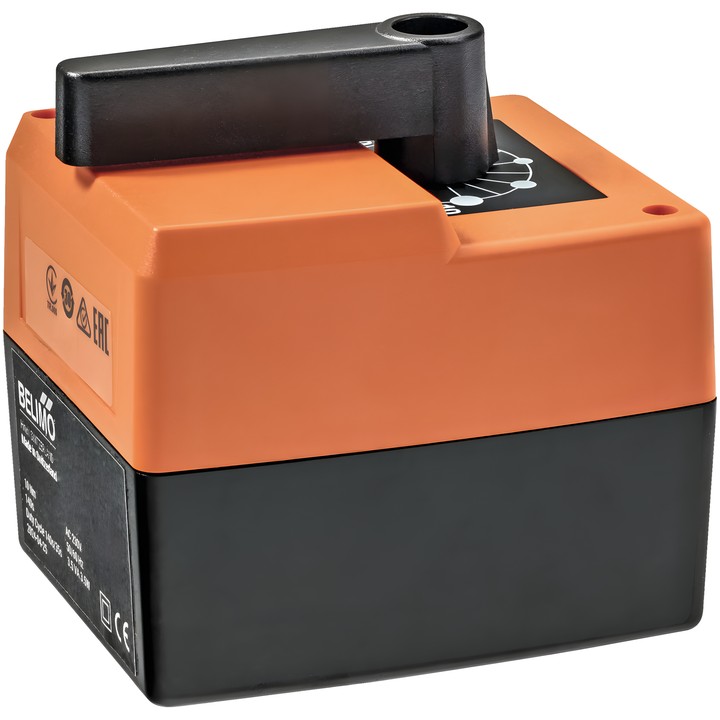

Belimo HTY24-SR - rotary actuator for mixing valves

Belimo HTY24-SR - rotary actuator for mixing valves

Belimo
zł1,878.21
VAT included
zł1,527.00 tax excluded

Rotary actuator for operating mixing valves in HVAC systems when used with a mounting kit. Torque 10 Nm, AC/DC 24 V supply and modulating control with an operating range of Y 0...10 V or 2...10 V.

Running time 35 s / 90°, position feedback signal U 0...10 V and degree of protection IP40.

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo HTY24-SR – rotary actuator

Actuator designed to operate mixing valves in stationary heating, ventilation and air-conditioning systems when used with a suitable mounting kit. The control signal Y determines the actuator position.

Key features and parameters

  • Torque: 10 Nm; rotation angle: 90°.
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Modulating control; selectable operating range Y: 0...10 V or 2...10 V; position feedback signal U: 0...10 V.
  • Motor running time: 35 s / 90°; direction of movement: clockwise (cw).
  • Power consumption during operation: 2.5 W; power for cable sizing: 4 VA.
  • Power and control connection: Cable 1 m, 4x 0.75 mm².
  • Manual adjustment by temporarily or permanently disengaging the gearbox using the knob on the housing.
  • Degree of protection IEC/EN: IP40; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).

Installation requires a suitable valve mounting kit. Protect the device from moisture; it is not intended for outdoor use.

  • Brand
    Belimo
  • Reference
    HTY24-SR
  • EAN13
    7630498103773

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    2.5 W
  • Rated power
    4 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    DC 2...10 V
  • Protection rating
    IP40
  • Manual override
    Temporary and permanent gear disengagement using the knob on the housing
  • Running time (motor)
    35 s / 90°
  • Torque
    10 Nm
  • Direction of movement - motor
    clockwise rotation (cw)
  • Rotational angle
    90°

Techniczna karta katalogowa

Download (1.59MB)

Instrukcja montażu

Download (236.5KB)

EU Declaration of Conformity – HTY24-SR

Download (39.58KB)

Environmental Declaration – HT..

Download (72.01KB)
In business since 2005
Over 20 years of experience
A trusted partner
Reliable service and customer trust
Technical support
Help with selecting and operating equipment
