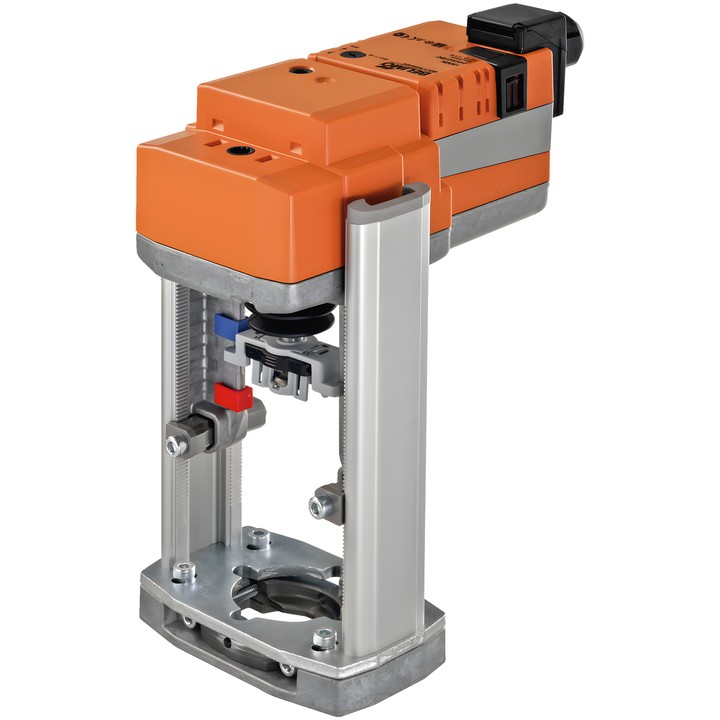

Belimo NVC230A-RE - linear actuator for globe valves

Belimo NVC230A-RE - linear actuator for globe valves

Belimo
zł1,995.60
VAT included
zł1,622.44 tax excluded

RetroFIT+ linear actuator for 2-way and 3-way globe valves. Force 1000 N, rated voltage AC 100...240 V, Close/Open or 3-point control, stroke 20 mm and travel time 35 s / 20 mm.

Equipped with connection terminals and manual override by push-button with locking option. IEC/EN protection rating IP54.

Delivery in approx. 14 days
Share

Belimo NVC230A-RE actuator

NVC230A-RE is a RetroFIT+ linear actuator for 2-way and 3-way globe valves. The documentation describes installation on valves from various manufacturers using a bracket and universal valve neck and stem adapters.

Key features

  • Actuator force: 1000 N; stroke: 20 mm.
  • Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
  • Control: Close/Open, 3-point; motor travel time: 35 s / 20 mm.
  • Power consumption during operation: 3.5 W; in the idle position: 0.5 W; sizing power: 6.5 VA.
  • Power and control connection: 4 mm² terminals (cable ø4...10 mm).
  • Manual override by push-button with locking option; mechanical position indicator.
  • IEC/EN protection rating: IP54; IEC/EN protection class: II, reinforced insulation.

The actuator is overload-protected and stops automatically when the end position is reached. The direction-of-motion switch allows the stroke direction to be changed during normal operation.

  • Brand
    Belimo
  • Reference
    NVC230A-RE
  • EAN13
    7630498113802

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    3.5 W
  • Power consumption (holding)
    0.5 W
  • Rated power
    6.5 VA
  • Power supply control connection
    Terminals 4 mm² (cable ø4...10 mm)
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Force
    1000 N
  • Manual override
    Push-button, with locking option
  • Stroke
    20 mm
  • Running time (motor)
    35 s / 20 mm

Techniczna karta katalogowa

Download (1.29MB)

Instrukcja montażu

Download (2.63MB)

EU Declaration of Conformity – NVC230A-RE

Download (32.54KB)

Environmental Declaration – NV..-RE

Download (72.16KB)
