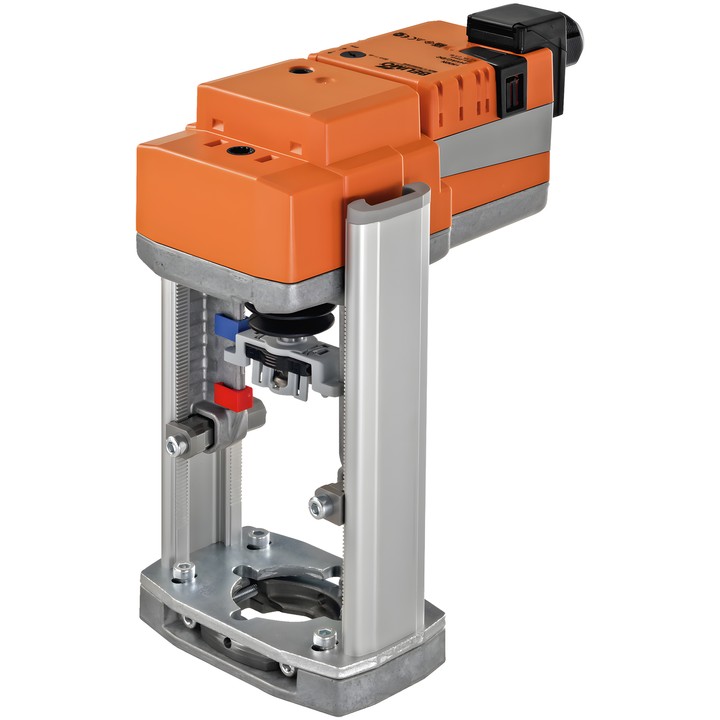

Belimo NV230A-RE - linear actuator for globe valves

Belimo NV230A-RE - linear actuator for globe valves

Belimo
zł1,723.28
VAT included
zł1,401.04 tax excluded

RetroFIT+ linear actuator for 2- and 3-way globe valves. Force 1000 N, AC 100...240 V supply, Close/Open or 3-point control.

Stroke 20 mm, travel time 150 s / 20 mm. Manual adjustment by push-button, with lock option.

Delivery in approx. 14 days
Share

Belimo NV230A-RE

RetroFIT+ linear actuator designed for 2- and 3-way globe valves. The RetroFIT+ solution allows installation on a wide range of valves from different manufacturers using a mounting bracket and universal valve neck and stem adapters.

Key specifications

  • Actuator force: 1000 N; stroke: 20 mm.
  • Nominal voltage: AC 100...240 V; frequency: 50/60 Hz.
  • Control: Close/Open, 3-point.
  • Motor travel time: 150 s / 20 mm.
  • Power consumption during operation: 2 W; at rest: 1 W; for wire sizing: 4.5 VA.
  • Power and control connection: 4 mm² terminals (cable ø4...10 mm).
  • Manual adjustment by push-button, with lock option; mechanical position indicator.
  • IEC/EN degree of protection: IP54; IEC/EN protection class: II, reinforced insulation.

The actuator is protected against overload and stops automatically when the end stop is reached.

  • Brand
    Belimo
  • Reference
    NV230A-RE
  • EAN13
    7630498113710

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    2 W
  • Power consumption (holding)
    1 W
  • Rated power
    4.5 VA
  • Power supply control connection
    Terminals 4 mm² (cable ø4...10 mm)
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Force
    1000 N
  • Manual override
    Push-button, with locking option
  • Stroke
    20 mm
  • Running time (motor)
    150 s / 20 mm
