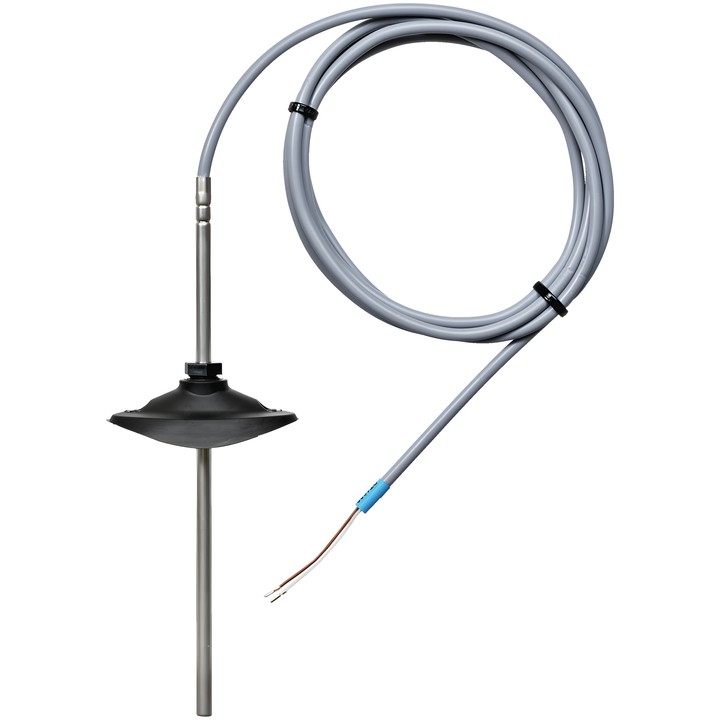

Belimo 01CT-1LLF - cable temperature sensor with mounting flange

Name: Belimo 01CT-1LLF - cable temperature sensor with mounting flange
Brand: Belimo
SKU: 01CT-1LLF
Price: 115.31 PLN
Availability: BackOrder

Belimo

zł115.31

VAT included

zł93.75 tax excluded

Passive temperature sensor for measuring in air ducts, with NTC10k (10k2) output signal. The stainless steel probe is 100 mm long and 6 mm in diameter.

Supplied with a 2 m, 2-wire PVC cable and mounting flange. Degree of protection: IP67 / NEMA 4X.

Delivery in approx. 14 days

Belimo 01CT-1LLF cable temperature sensor

Passive sensor designed to measure air temperature in ducts. Model 01CT-1LLF has a stainless steel probe and PVC cable; a plastic mounting flange for a 6 mm diameter probe is included.

Key features

Output signal: NTC10k (10k2).
Probe length: 100 mm; probe diameter: 6 mm.
Electrical connection: 2 m, 2-wire cable.
Measuring range: -35...100°C [-30...210°F].
Accuracy for NTC sensors: ±0.2°C @ 25°C [±0.35°F @ 77°F].
Measuring current for NTC10k (10k2): <2 mA @ 25°C [77°F].
Degree of protection: IP67 (IEC/EN) and NEMA 4X (NEMA/UL).
Mounting flange included: A-22D-A03, plastic, for a 6 mm probe, up to max. 120°C [248°F].

When connecting a passive 2-wire sensor, consider the effect of supply current and wire resistance on measurement accuracy, as specified in the technical data sheet.
