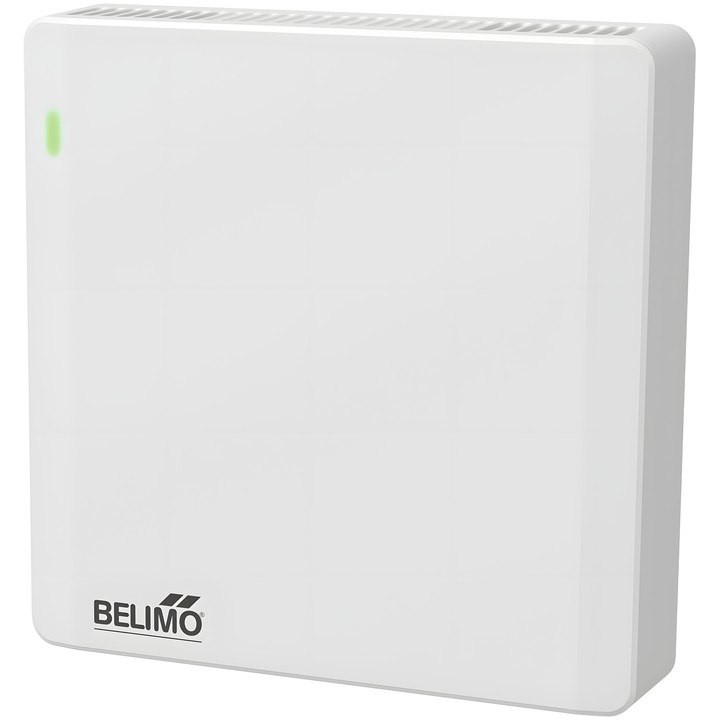

Belimo P-22RTM-1U00A-2 - room CO₂, humidity and temperature sensor and setpoint adjuster

Name: Belimo P-22RTM-1U00A-2 - room CO₂, humidity and temperature sensor and setpoint adjuster
Brand: Belimo
SKU: P-22RTM-1U00A-2
Price: 979.13 PLN
Availability: BackOrder

Belimo

zł979.13

VAT included

zł796.04 tax excluded

Room sensor and setpoint adjuster for measuring CO₂, humidity and temperature, and adjusting temperature and ventilation setpoints. Communicates via Modbus RTU, BACnet MS/TP and MP-Bus; measured values can be read and setpoints changed in the Belimo Display App via NFC.

Delivery in approx. 14 days

Belimo P-22RTM-1U00A-2

The room sensor and setpoint adjuster measures CO₂, relative humidity and temperature, and calculates the dew point. It enables adjustment of temperature and ventilation setpoints. The Belimo Display App is used to read room values and change setpoints via NFC. The device can be configured using Belimo Assistant 2.

Key features and parameters

CO₂ measuring range: 0...2000 ppm; NDIR, dual-channel measuring technology.
Humidity measuring range: 0...100% RH; dew point measuring range: -50...50°C [-60...120°F].
Temperature measuring range: 0...50°C [32...122°F].
Communication: Modbus RTU, BACnet MS/TP, MP-Bus.
Display: Belimo Display App and LED; the LED indicates CO₂ levels.
Input: 1x digital input for a volt-free contact.
Nominal voltage: AC/DC 24 V.
IEC/EN protection class: IP30.
Surface-mount housing: PC, white, RAL 9003; dimensions 86x86x24 mm (HxWxD).
