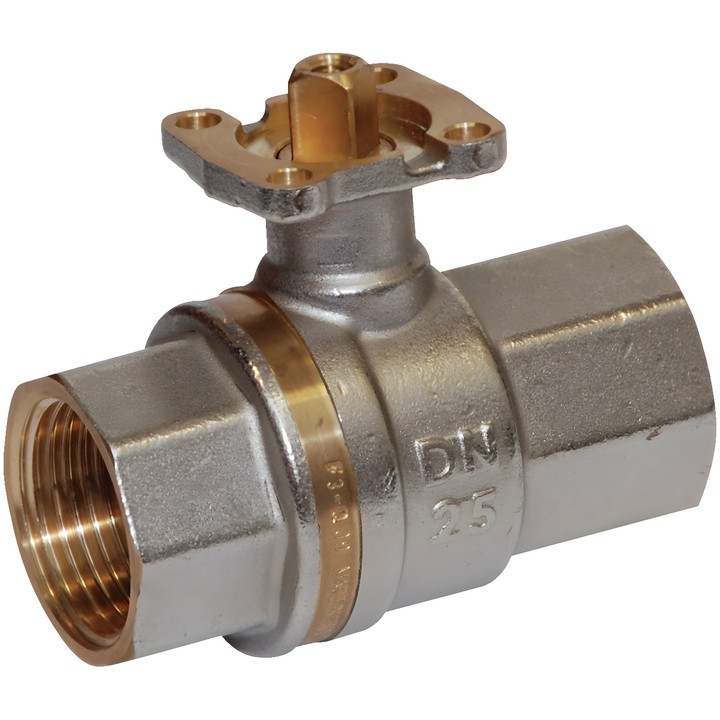

Belimo K240B - 2-way on/off ball valve

Belimo K240B - 2-way on/off ball valve

Belimo
zł1,254.60
VAT included
zł1,020.00 tax excluded

Belimo K240B is a 2-way on/off ball valve with a nominal diameter of DN 40 and a nominal pressure of PN 25. It has an Rp 1 1/2" female thread and a Kvs of 156 m³/h.

Designed for water and water with a maximum of 50% by volume glycol. Fluid temperature: -15...90°C [5...194°F].

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo K240B ball valve

2-way on/off ball valve for open and closed water systems. The pipe connection is an internal thread according to ISO 7-1.

Key features

  • Nominal diameter: DN 40; nominal pressure: PN 25.
  • Female thread: Rp 1 1/2".
  • Kvs: 156 m³/h.
  • Fluid: water, water with a maximum of 50% by volume glycol.
  • Fluid temperature: -15...90°C [5...194°F].
  • Valve body: nickel-plated brass; closing element: chrome-plated brass; stem: brass.
  • Seat: PTFE, Viton O-ring.
  • Maintenance: not required.

Permissible operating pressure ps depends on temperature; the technical data sheet refers to the pressure-temperature diagram for this information.

  • Brand
    Belimo
  • Reference
    K240B
  • EAN13
    7630498107153

  • Kvs
    156 m³/h
  • Medium
    Water, water with up to 50% vol. glycol.
  • Pattern
    2-way
  • Fluid temperature
    -15...90°C [5...194°F]
  • Pipe connection
    Internal thread

Techniczna karta katalogowa

Download (1.6MB)

Techniczna karta katalogowa – K2..

Download (1.6MB)
