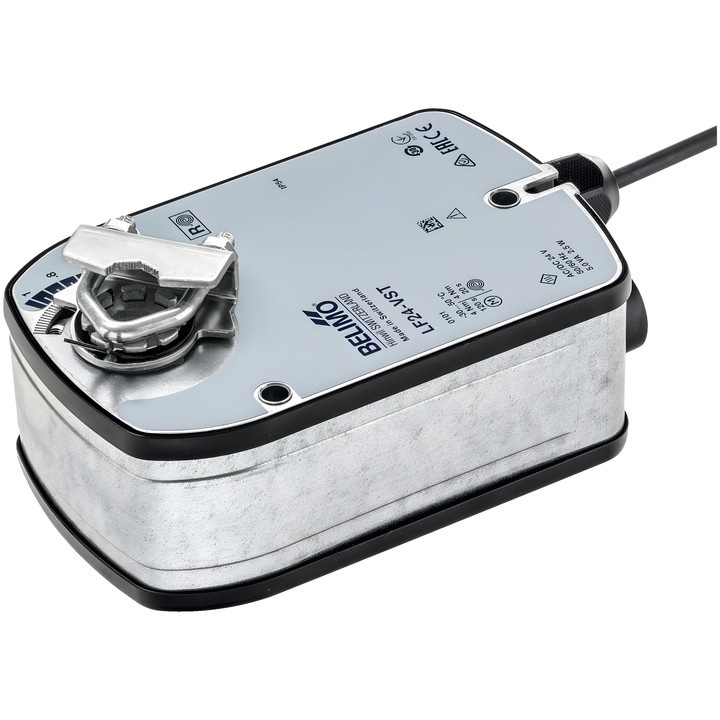

Belimo LF24-VST - rotary actuator with fail-safe function for VAV and CAV

Name: Belimo LF24-VST - rotary actuator with fail-safe function for VAV and CAV
Brand: Belimo
SKU: LF24-VST
Price: 1808.10 PLN
Availability: OutOfStock

Belimo

zł1,808.10

VAT included

zł1,470.00 tax excluded

Belimo LF24-VST rotary actuator for VAV and CAV units, with fail-safe function and 4 Nm torque. AC/DC 24 V supply, PP communication control and motor running time of 120 s / 90°.

Equipped with a 0.5 m cable with VST plug connector, universal shaft clamp 8...16 mm and mechanical position indicator. IP54 protection rating.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo LF24-VST – technical data

LF24-VST is a rotary actuator with a fail-safe function, designed for VAV and CAV units in building services installations.

Motor and fail-safe function torque: 4 Nm.
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
Rated voltage range: AC 19.2...28.8 V / DC 21.6...28.8 V.
Control: PP communication.
Motor running time: 120 s / 90°; fail-safe function running time: <20 s / 90°.
Power consumption during operation: 2.5 W; in the idle position: 1 W; for cable sizing: 5 VA.
Power and control connection: 0.5 m cable with VST plug connector.
Mechanical connection: universal shaft clamp 8...16 mm; mechanical position indicator.
Protection rating: IP54; ambient temperature: 0...50°C [32...122°F].
Manual override: no; parallel operation: no.

After commissioning the installation and after every change to the rotation angle, self-adaptation must be performed by pressing the adaptation button once.
