Belimo LH230A100 - 150 N linear actuator

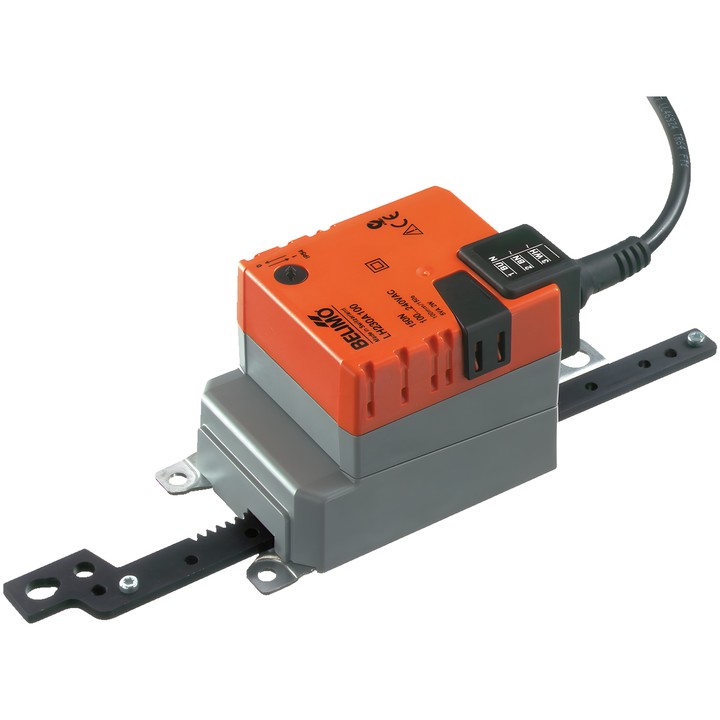

Belimo LH230A100 linear actuator

This model is designed to control dampers and slide valves in stationary heating, ventilation and air conditioning installations. According to the technical data sheet, it supports air dampers with an area of up to approx. 1 m².

Key features and specifications

• Motor force: 150 N.
• Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
• Control: Close/Open, 3-point.
• Stroke: 100 mm; max. 100 mm, adjustable in 20 mm increments. Stroke is limited on both sides by mechanical stops.
• Motor running time: 150 s / 100 mm.
• Direction of movement selected by switch 0 (extended) / 1 (retracted).
• Manual adjustment by push-button, with locking option.
• Power consumption: 2 W during movement, 1 W at rest; sizing power: 5 VA.
• Power and control connection: 1 m cable, 3x 0.75 mm².
• IEC/EN IP54 protection rating; IEC/EN protection class II, reinforced insulation.
• Ambient temperature: -30...50°C [-22...122°F].

The actuator is protected against overload and stops automatically when the end position is reached. Installation where lateral forces occur requires a suitable rotary support and coupling element, in accordance with the manufacturer's instructions.
