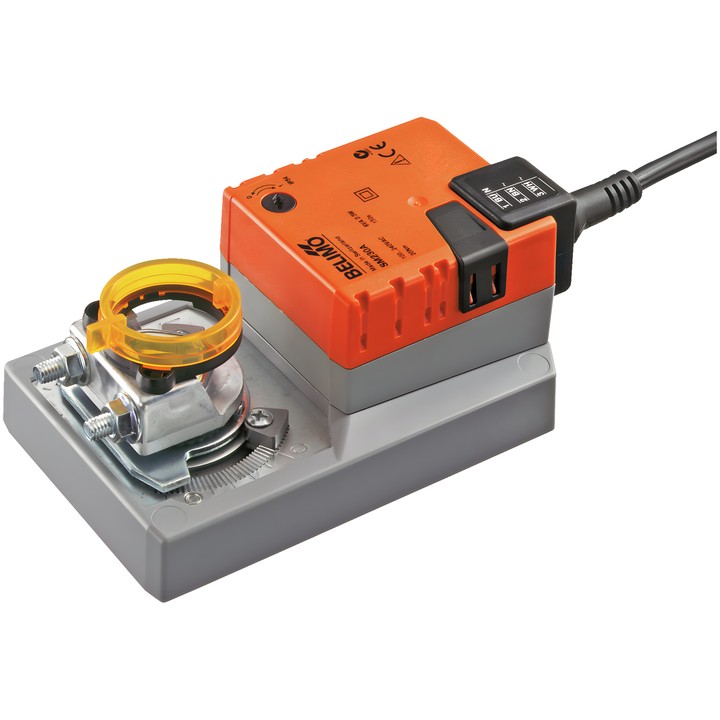

Belimo SM230A - damper actuator

Belimo SM230A - damper actuator

Belimo
zł666.89
VAT included
zł542.19 tax excluded

Belimo SM230A rotary actuator for dampers, with a torque of 20 Nm and powered by AC 100...240 V. Supports Close/Open and 3-point control; running time is 150 s / 90°.

Features a reversible universal clamp mounting bracket 10...20 mm, push-button manual override and mechanical rotation angle limiters.

Delivery in approx. 14 days
Share

Belimo SM230A – damper actuator

Actuator for positioning dampers in technical building systems. According to the technical data sheet, it is designed for air dampers with an area of up to approx. 4 m².

Key features and technical data

  • Torque: 20 Nm.
  • Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
  • Control: Close/Open, 3-point.
  • Motor running time: 150 s / 90°; maximum rotation angle: 95°.
  • Direction of movement selected by switch: 0 (counterclockwise) / 1 (clockwise).
  • Push-button manual override with locking option; rotation angle limited by adjustable mechanical stops.
  • Reversible universal clamp mounting bracket 10...20 mm; mechanical, removable position indicator.
  • Power and control connection: 1 m cable, 3x 0.75 mm².
  • Power consumption during movement: 2.5 W; at rest: 0.6 W; value for cable sizing: 6 VA.
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: II, reinforced insulation.
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    SM230A
  • EAN13
    7630498114311

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    2.5 W
  • Power consumption (holding)
    0.6 W
  • Rated power
    6 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm²
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    20 Nm
  • Direction of movement - motor
    Selectable via switch: 0 (rotation to the left) / 1 (rotation to the right)
  • Rotational angle
    95°
  • Mechanical connection
    Reversible universal mounting clamp 10...20 mm

Techniczna karta katalogowa

Download (1.49MB)

Instrukcja montażu

Download (570.1KB)

EU Declaration of Conformity – SM230A

Download (32.73KB)

Environmental Declaration – SM..

Download (72.45KB)
