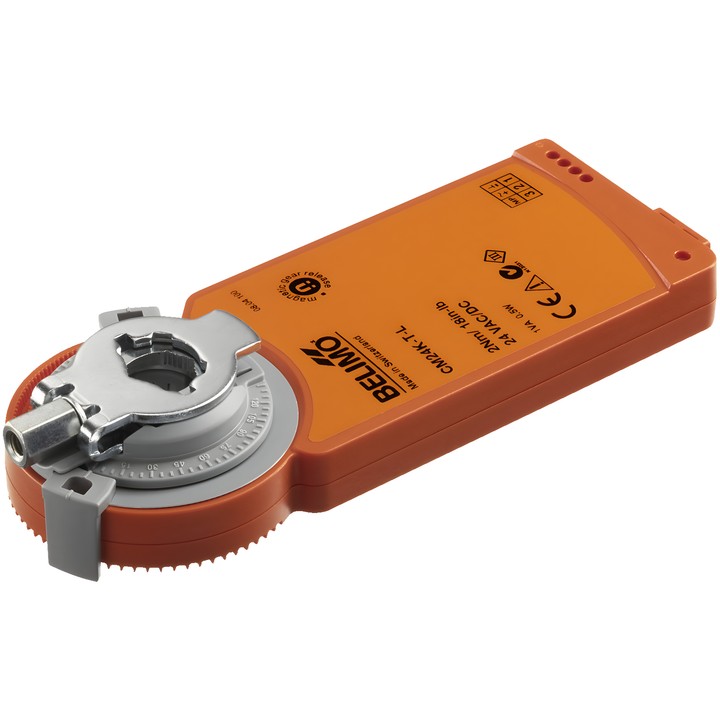

Belimo CM24K-T-R.2 - damper actuator with safety function

Belimo CM24K-T-R.2 - damper actuator with safety function

Belimo
zł683.88
VAT included
zł556.00 tax excluded

Belimo CM24K-T-R.2 damper actuator for use with the SKM230-T-B12 module. Torque 2 Nm, DC 24 V supply and Close/Open control; motor running time is 75 s / 90°.

Features a universal clamp 6...12.7 mm, manual adjustment using a magnet and adjustable mechanical rotation angle limiters. Protection rating IP20.

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo CM24K-T-R.2 damper actuator

The actuator is designed for use with the SKM230-T-B12 module to control dampers in building services systems. Close/Open control is provided via the module; the documentation specifies a safety function.

Key features and specifications

  • Torque: 2 Nm; rated voltage: DC 24 V.
  • Motor running time: 75 s / 90°; rotation angle: 95°, with adjustable mechanical limiters on both sides.
  • Motor direction of rotation: clockwise (cw).
  • Mechanical connection: universal clamp 6...12.7 mm.
  • Manual adjustment using a magnet.
  • Power consumption during operation: 0.5 W; at rest: 0.2 W; wire sizing power: 1 VA.
  • Power and control connection: terminals; solid copper wire 1,5 mm² or stranded 1,0 mm² (3-core).
  • Degree of protection IEC/EN: IP20; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].
  • Multipack: 20 pcs.

  • Brand
    Belimo
  • Reference
    CM24K-T-R.2
  • EAN13
    7630498119330

  • AC/DC voltage
    DC 24 V
  • Power consumption (running)
    0.5 W
  • Power consumption (holding)
    0.2 W
  • Rated power
    1 VA
  • Power supply control connection
    Terminals Solid copper wire 1,5 mm² or stranded 1,0 mm² (3-core)
  • Control type
    Close/Open
  • Protection rating
    IP20
  • Manual override
    Using a magnet
  • Running time (motor)
    75 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    2 Nm
  • Direction of movement - motor
    clockwise rotation (cw)
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 6...12.7 mm

Techniczna karta katalogowa

Download (1.03MB)

Instrukcja montażu

Download (578.1KB)

EU Declaration of Conformity – CM24K-T-R.2

Download (32.76KB)

Environmental Declaration – CM..

Download (72.47KB)
